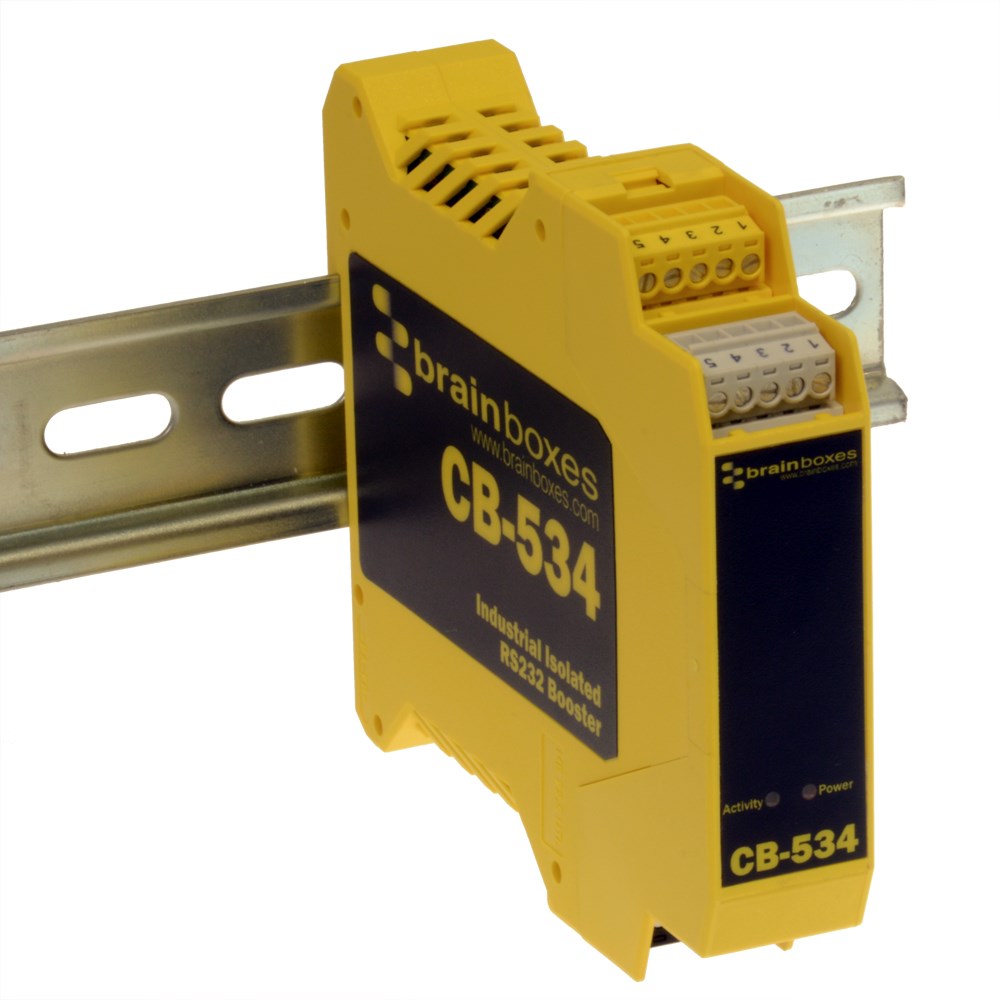

CB-534
Industrial Isolated RS232 Booster
Description
Booster for RS232 signal can extend cable length. Works with a wide voltage swing and outputs -11V to +11V signal making it suitable for legacy and non-conforming RS232 equipment. Provides isolation between two RS232 devices. This product doesn’t require any software, simply connect using the easy-wire numbered terminal blocks.
Key Features
- Boosts and Isolates RS232 Signals
- Works at all data word lengths, parity options and stop bits combinations
- No Software Required
- Max baud rate 120,000 - Compatible with legacy equipment
- -30°C to +80°C/-22ºF to +176ºF Temperature range
Technical Specifications
Serial Port
| Ports | 2 |
| Protocol | RS232 |

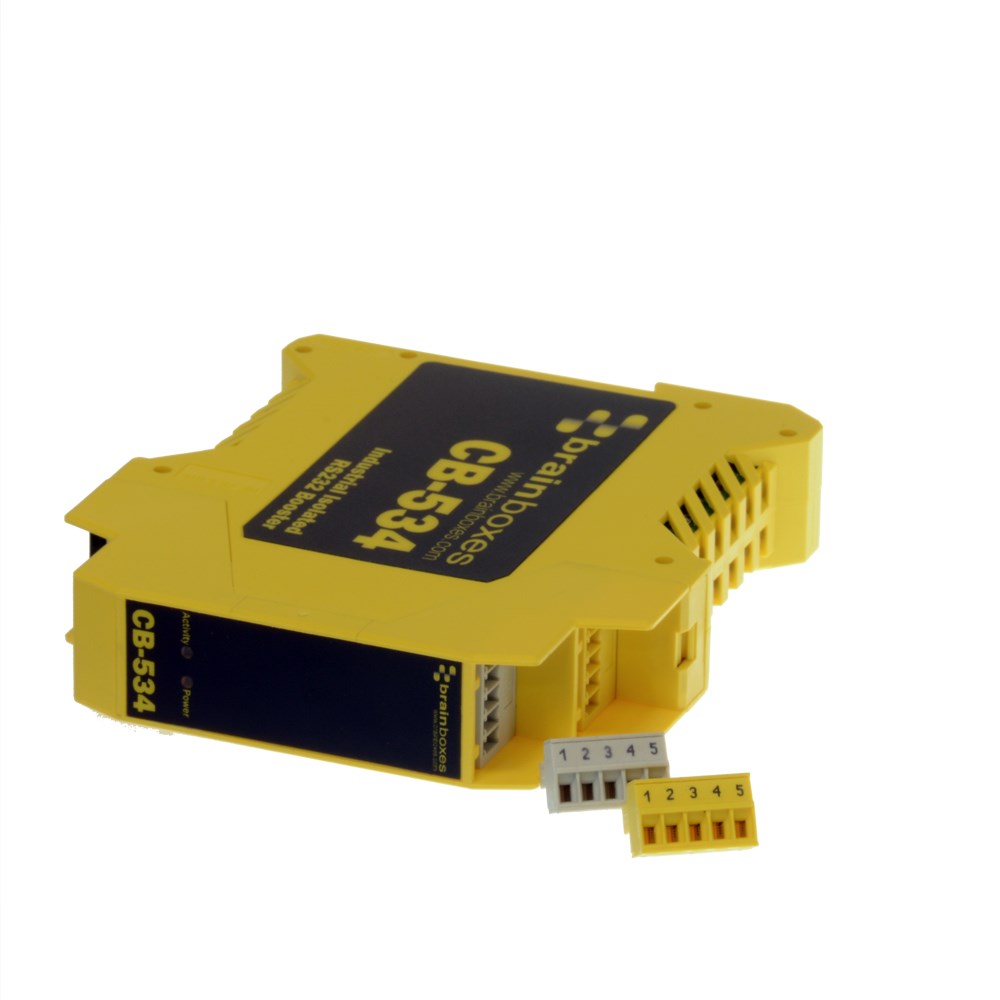

| Connector | Removable Screw terminal block connector - 3.5 mm pitch |
Serial Port Settings
| Max Baud Rate | 120,000 |
| Parity | Works at all data word lengths, parity option and stop bits combinations |
| Flow Control | TXD, RXD, RTS, CTS |
Power
| Power Input | 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected |
| Max Input | 35 Volts |
| Power Consumption (Max) | 2.5 Watt Max |
| Power Consumption (Typical) | 2.5W typical 110mA@24V |
Accessory
| Compatibility | Fits all Brainboxes 34mm ExpressCards |
General
| Operating Temperature Range | -30 °C to +80 °C / -22 °F to +176 °F |
| Industrial Standard | Yes |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Galvanic Isolation | Yes |
Physical
| Product Weight | 0.11 kg |
| Product Dimensions | 114(l) x 99(w) x 23(h) mm |
| Packaged Weight | 0.206 kg |
| Packaged Dimensions | 160(l) x 135(w) x 49(h) mm |
Identification
| GTIN (barcode) | 837324004045 |
Operating System Compatibility
| Operating Systems | Suitable for any device with Serial Port |
