UC-295
4x RS232 PCI Serial Port Card with LPT Parallel Port
Description
Universal PCI card providing four RS232 serial ports and one LPT parallel printer port in a single PCI slot, ideal for industrial and legacy system expansion.
Supports data transfer rates up to 115,200 baud with 64 byte transmit and 64 byte receive FIFOs. Combined RS232 and LPT connectivity ensures flexible multi-device integration.
Technical Details
- 4x RS232 serial ports (DB9)
- 1x LPT parallel printer port (25 Pin)
- Standard Height PCI 3.0 card
- 64 Byte TX and RX FIFOs
- Up to 115,200 baud rate
- Drivers for popular Windows operating systems
Key Features
- 4 Port RS232 + 1 LPT Printer Port
- Standard Height form factor
- DB9 9-Pin Male connectors
- 25 Pin Female LPT connector (Fly Lead)
- 64 Byte FIFO buffers
- PCI 3.0 Interface
Technical Specifications
Serial Port
| Ports | 4 |
| Protocol | RS232 |
| Connector | DB9 Connector (9 Pin Male) + LPT (25 Pin Female) |
| UART | Brainboxes 16C958 |
| UART Compatibility | 16750/16550/16450 backwards compatible + enhanced 950 mode |
| Tx FIFO Size | 64 |
| Rx FIFO Size | 64 |
| Operating Distance | EIA - RS232 Standard |
| Cable | 4 port cable (44 way D to 4x9 Pin Male) |
Serial Port Settings
| Max Baud Rate | 115,200 |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1, 1.5 or 2 |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
| Tx/Rx Modes | Point to Point |

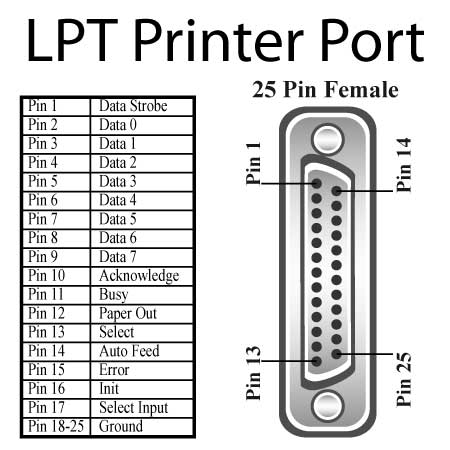

Printer Port
| Printer Port | 1 |
| Protocol | LPT |
| Connector | 25 Pin Female D Connector on Fly Lead |
General
| PCB Layers | 4 |
| Form Factor | Standard Height |
| Includes Printer Port | Yes |
| Galvanic Isolation | No |
| Power Consumption | 300mA @ 5V, 60mA @ 12V |
| Product Weight | 0.072 kg |
| Product Dimensions | 135 x 120 x 18 mm |
| Packaged Weight | 0.693 kg |
| Packaged Dimensions | 200 x 135 x 80 mm |
| GTIN (barcode) | 837324002164 |
Operating System Compatibility
| Supported Systems | Windows 8 (32/64), Windows Server 2012, Windows 7 (32/64), Windows Server 2008 (32/64), Windows Vista (32/64), Windows XP (32/64), DOS |
Interface
| PCI Version | PCI 3.0 – Peripheral Component Interface |
