UC-157
Low Profile Parallel Port Printer PCI Card – 1 LPT Port (PCI 3.0)
Description
Universal PCI card providing one low profile LPT printer port, ideal for compact desktop and industrial systems requiring legacy parallel device connectivity.
Built on PCI 3.0 architecture, this card delivers reliable parallel communication and broad operating system support. Backed by lifetime warranty and lifetime technical support.
Technical Details
- 1x LPT Printer Port
- Low Profile PCI design
- 25 Pin Female D Connector
- PCI 3.0 Interface
- Wide OS compatibility
- Lifetime Warranty & Support
Key Features
- 1 Port LPT Printer Card
- Low Profile form factor
- 25 Pin Parallel Female connector
- Brainboxes 16C958 UART
- Broad OS compatibility
- PCI 3.0 Interface
Technical Specifications
Printer Port
| Ports | 1 |
| Protocol | LPT Printer |

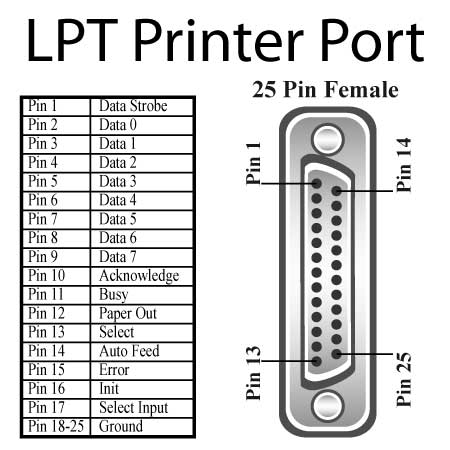

| Connector | 25 Pin Parallel Port Female Connector |
| Printer Port Protocol | LPT |
| Printer Port Connector | 25 Pin Female D Connector on Fly Lead |
UART
| UART | Brainboxes 16C958 |
| UART Compatibility | 16750/16550/16450 backwards compatible + enhanced 950 mode |
General
| PCB Layers | 4 |
| Form Factor | Low Profile |
| Includes Printer Port | Yes |
| Power Consumption | 195mA @ 5V, 15mA @ 12V |
| Product Weight | 0.063 kg |
| Product Dimensions | 136 x 80 x 18 mm |
| Packaged Weight | 0.174 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324000306 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows Server 2012, Windows 7 (32/64), Windows Server 2008 (32/64), Windows Vista (32/64), Windows XP (32/64), Windows ME, Windows 2000, Windows 98, Windows NT 4.0, Windows 95, DOS |
Interface
| PCI Version | PCI 3.0 – Peripheral Component Interface |
