UC-146
Parallel Port Printer PCI Card – 1 LPT Port (PCI 3.0)
Description
Universal PCI card providing one industry standard LPT printer port. Designed for reliable legacy printer and parallel device connectivity in desktop and industrial PC systems.
Built on PCI 3.0 architecture, the card includes detailed sample source code for many popular programming languages and supports a wide range of operating systems. Backed by lifetime warranty and lifetime technical support.
Technical Details
- 1x LPT Printer Port
- PCI 3.0 (Universal PCI) Interface
- 25 Pin Female D Connector
- Wide OS compatibility
- Sample source code included
- Lifetime Warranty & Support
Key Features
- 1 Port LPT Printer Card
- Standard Height PCI design
- 25 Pin Parallel Female connector
- Brainboxes 16C958 UART
- Broad OS compatibility
- PCI 3.0 Interface
Technical Specifications
Printer Port
| Ports | 1 |
| Protocol | LPT Printer |

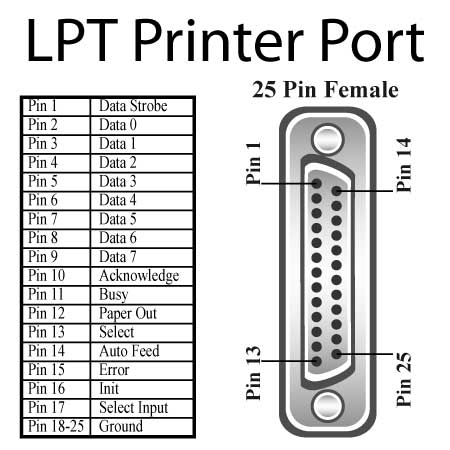

| Connector | 25 Pin Parallel Port Female Connector |
| Printer Port Protocol | LPT |
| Printer Port Connector | 25 Pin Female D Connector on Fly Lead |
UART
| UART | Brainboxes 16C958 |
| UART Compatibility | 16750/16550/16450 backwards compatible + enhanced 950 mode |
General
| PCB Layers | 4 |
| Form Factor | Standard Height |
| Includes Printer Port | Yes |
| Power Consumption | 195mA @ 5V / 15mA @ 12V |
| Product Weight | 0.067 kg |
| Product Dimensions | 136 x 120 x 18 mm |
| Packaged Weight | 0.178 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324000290 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows Server 2012, Windows 7 (32/64), Windows Server 2008 (32/64), Windows Vista (32/64), Windows XP (32/64), Windows ME, Windows 2000, Windows 98, Windows NT 4.0, Windows 95, Linux, DOS |
Interface
| PCI Version | PCI 3.0 – Peripheral Component Interface |
Resources
