PX-475

1 Port RS232 PCI Express Serial Card with LPT Parallel Printer Port

Product image

Description

PCI Express card providing one RS232 serial port and one LPT printer port. Designed for reliable serial and parallel connectivity in servers and desktop PCs.

Data transfer rates up to 921,600 baud with 128 byte transmit and 128 byte receive FIFOs. Coupled with 1Mbit/s line drivers, this card delivers stable and high-performance RS232 communication alongside integrated LPT printer support.

Technical Details

  • 1x RS232 serial port + 1x LPT printer port
  • Standard Height PCI Express design
  • 128 Byte TX and RX FIFOs
  • Up to 921,600 baud data rate
  • Full hardware flow control support
  • Supports popular Windows operating systems

Key Features

  • 1 Port RS232 + 1 Port LPT Printer
  • DB9 9-Pin Male serial connector
  • 25-Pin Female D LPT connector on fly lead
  • Data rate up to 921,600 baud
  • Standard Height PCIe form factor
  • Industrial-grade reliability

Technical Specifications

Serial Port

Ports1
ProtocolRS232

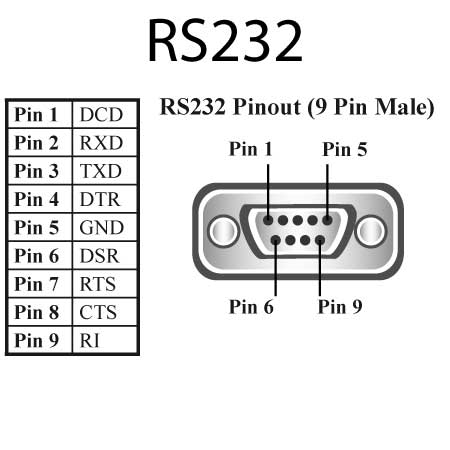

ConnectorDB9 Connector - 9 Pin Male
UARTOxford 950
UART Compatibility16750/16550/16450 backwards compatible
Tx FIFO Size128
Rx FIFO Size128
Operating DistanceEIA - RS232 Standard
CableNo Cable; Integrated Connector

Serial Port Settings

Max Baud Rate921,600
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx ModesPoint to Point

Printer Port

Printer Port1
Printer Port ProtocolLPT

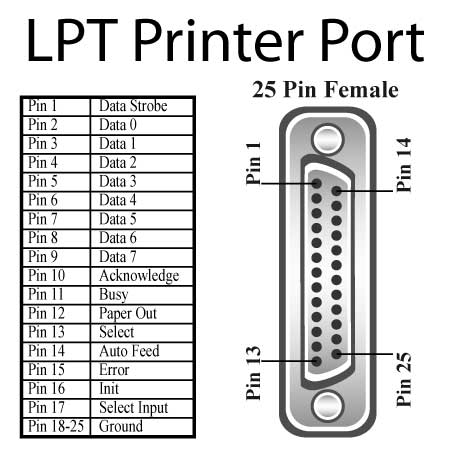

Printer Port Connector25 Pin Female D Connector on Fly Lead

General

PCB Layers4
Form FactorStandard Height
Includes Printer PortYes
Galvanic IsolationNo
Power Consumption380mA @ 3.3V, 15mA @ 12V
Product Weight0.058 kg
Product Dimensions120 x 83 x 18 mm
Packaged Weight0.151 kg
Packaged Dimensions160 x 135 x 49 mm
GTIN (barcode)837324002218

Operating System Compatibility

Supported SystemsWindows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Windows 2000

Interface

PCI ExpressPCI Express Base Specification 1.1 compliant (x1, x4, x8 & x16 slots)

Resources

📄 datasheet📄 PX Manual📄 PX RANGE-FR-datasheet📄 QSG
