PX-313
2 Port RS422/485 PCI Express Serial Card
Description
PCI Express card providing two RS422/485 serial ports. Designed for reliable industrial communication in servers and desktop PCs.
Data transfer rates up to 921,600 baud with 128 byte transmit and receive FIFOs. Coupled with 1Mbit/s line drivers, this card delivers stable and high-performance serial connectivity.
Technical Details
- 2x RS422/485 serial ports
- Standard Height PCI Express design
- 128 Byte TX and RX FIFOs
- Full Duplex and Half Duplex Autogating
- Suitable for servers and desktop PCs
- Lifetime warranty and support
- Alternative option: ES-313
Key Features
- 2 Port RS422/485 Serial Card
- Data rate up to 921,600 baud
- 128 Byte transmit and receive FIFOs
- PCI Express interface
- Full Duplex & Half Duplex Autogating
- Industrial-grade reliability
Technical Specifications
Serial Port
| Ports | 2 |
| Protocol | RS422/485 |

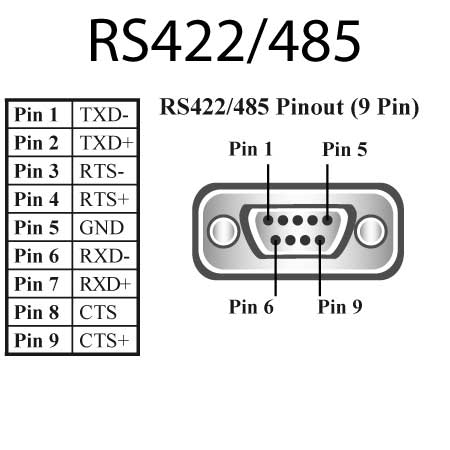

| Connector | DB9 Connector - 9 Pin Male |
| UART | Oxford 950 |
| UART Compatibility | 16750/16550/16450 backwards compatible |
| Tx FIFO Size | 128 |
| Rx FIFO Size | 128 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) |
| Cable | No Cable; Integrated Connector |
Serial Port Settings
| Max Baud Rate | 921,600 |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1, 1.5 or 2 |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
| Tx/Rx Modes | Full Duplex, Half Duplex Autogating - Hardware Autogating |
General
| PCB Layers | 4 |
| Form Factor | Standard Height |
| Includes Printer Port | No |
| Galvanic Isolation | No |
| Power Consumption | 380mA @ 3.3V |
| Product Weight | 0.064 kg |
| Product Dimensions | 120 x 105 x 18 mm |
| Packaged Weight | 0.157 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324000689 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Windows 2000 |
Interface
| PCI Express | PCI Express Base Specification 1.1 compliant (x1, x4, x8 & x16 slots) |
