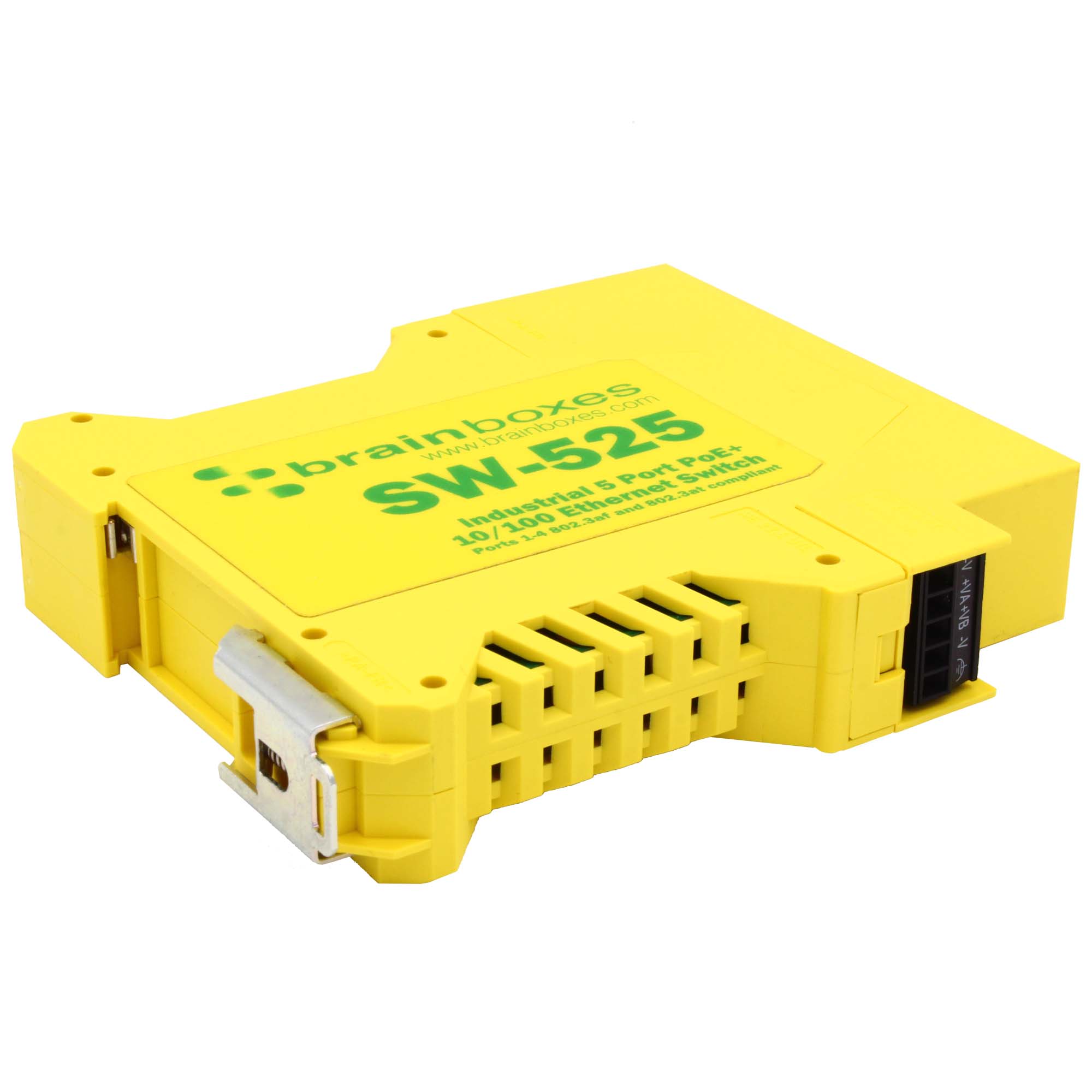

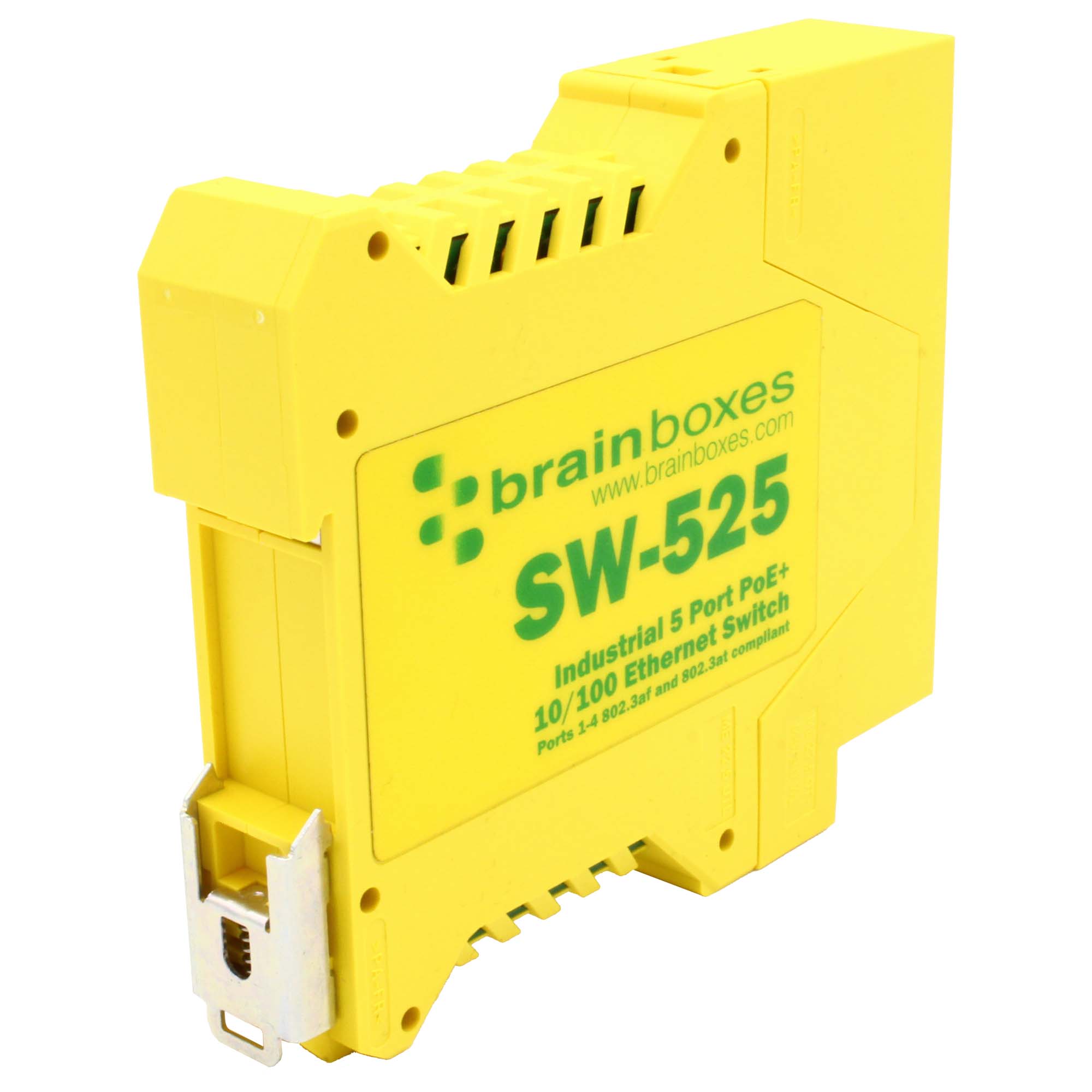

SW-525
Industrial 5 Port PoE+ 10/100 Ethernet Switch
Description
Industrial Compact 5 Port PoE+ Fast Ethernet device.
- Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply ensures reliable operation in demanding environments.

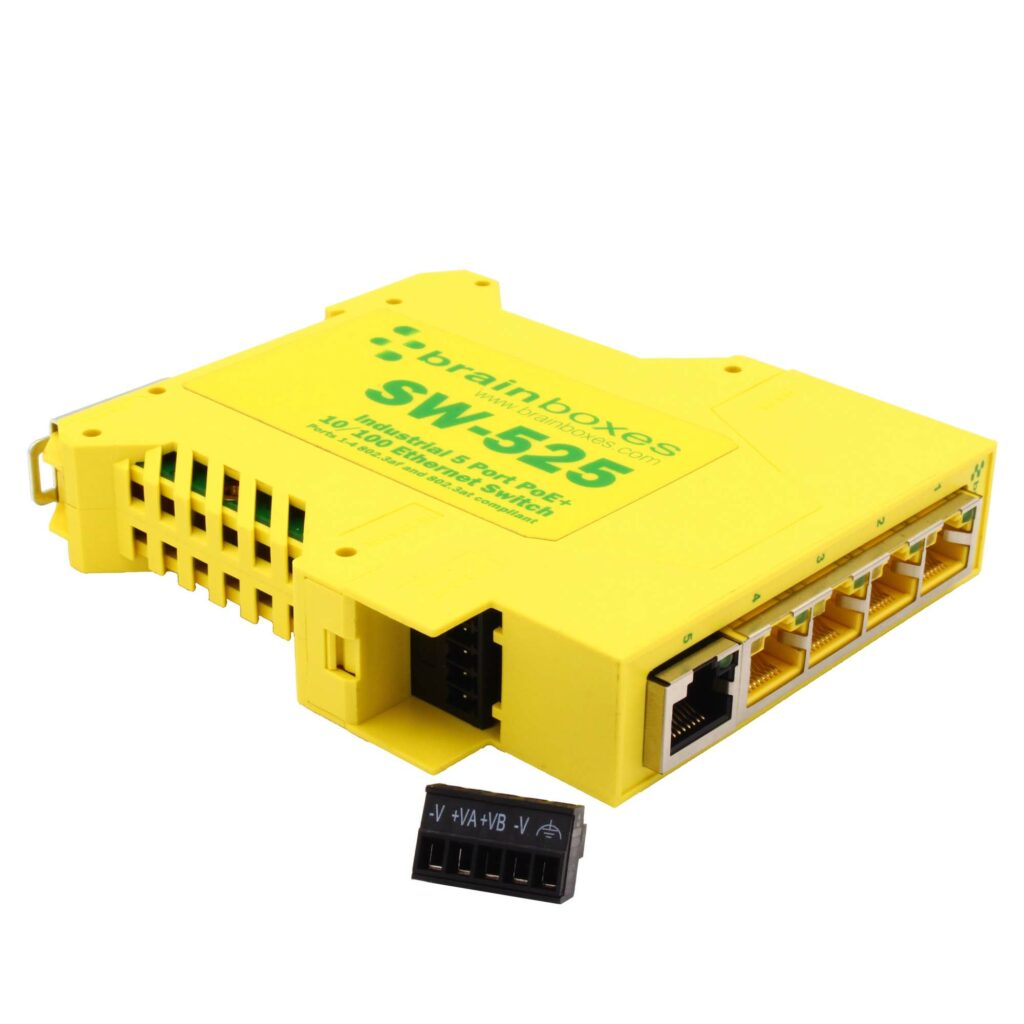

- Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
- Send power and data to remote CCTV cameras, PoE telephones, PoE WiFi access points, NVRs, and more.
Key Features
- 5x Port PoE+ 10/100 Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +44 V to +57 VDC
- Low Power Consumption: 4 W Max
- Operating Temperature Rating: -40 °C to +70 °C / -40 °F to +158 °F

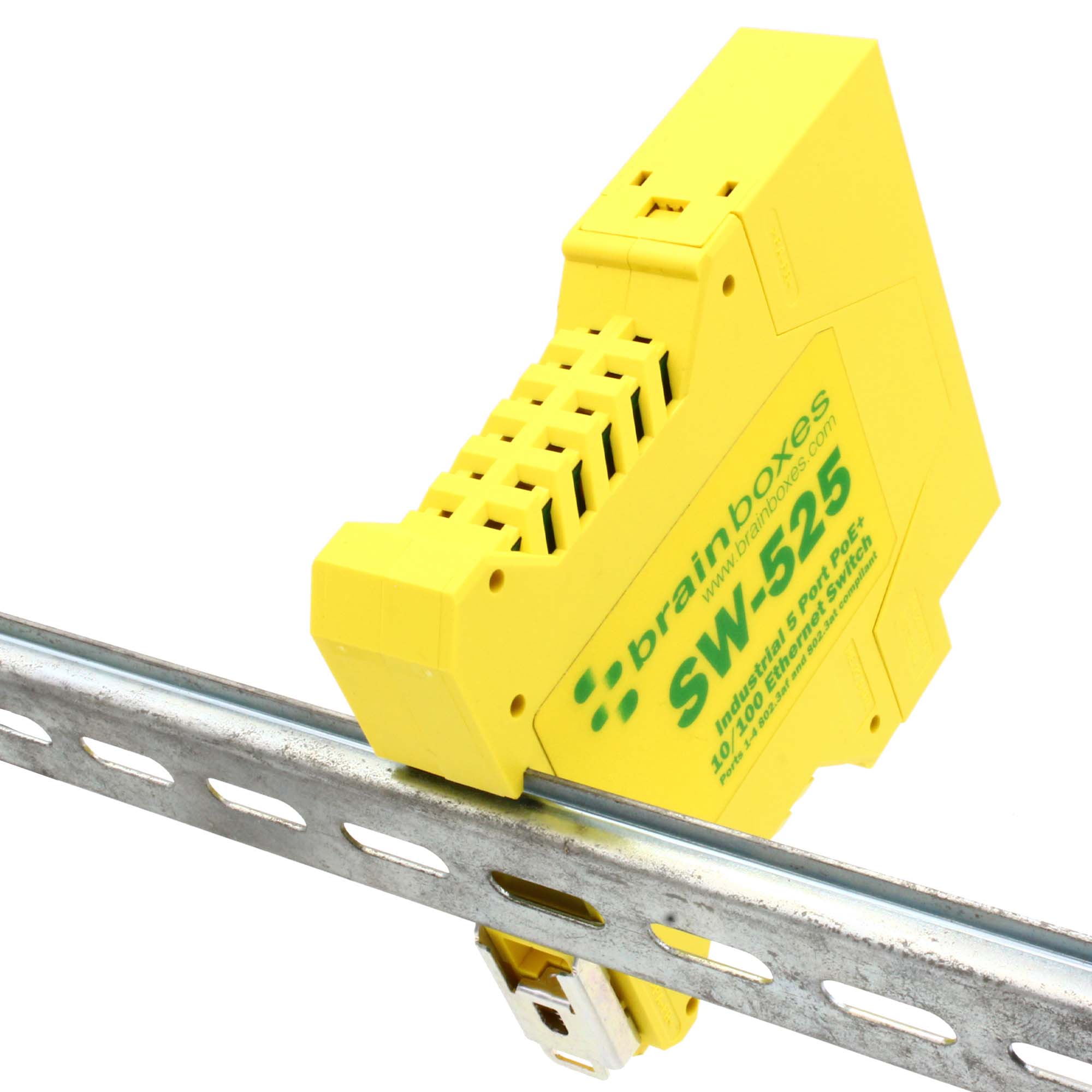

- DIN rail mountable
Technical Specifications
Ethernet
| Ethernet Ports | 5 |
| Ethernet Speed | 10/100 Fast Ethernet |
| PoE | PoE+ 802.3at Type 2 |
Power
| Power Input | 44V - 57V DC Redundant DC Dual Power Inputs, reverse polarity protected |
| PoE Power Budget | 90W @ 70℃ between all 4 PoE ports simultaneously |
General
| Operating Temperature Range | -40°C to +70°C / -40°F to +158°F |
| Storage Temperature | -40°C to +85°C / -40°F to +185°F |
| Form Factor | DIN rail mounted |
| Power Consumption | 4 Watts Max: 70mA@+57VDC |
| Product Weight | 0.124 kg, 4.37 ounces |
| Product Dimensions | 116x99x23 mm, 4.6x3.9x0.9 inches |
| Packaged Weight | 0.235 kg, 8.29 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
| GTIN (barcode) | 837324004533 |
Interface
| PoE Ethernet | 4 Ports of PoE Ethernet and 1 Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world, without the need for added power supplies and generators. |
