SW-518
Industrial 8 Port Gigabit Ethernet Switch DIN Rail Mountable
Description
Industrial 8 port Gigabit Ethernet unmanaged switch.
- Galvanically Isolated Ethernet Ports with automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range ensures reliable operation in demanding environments.

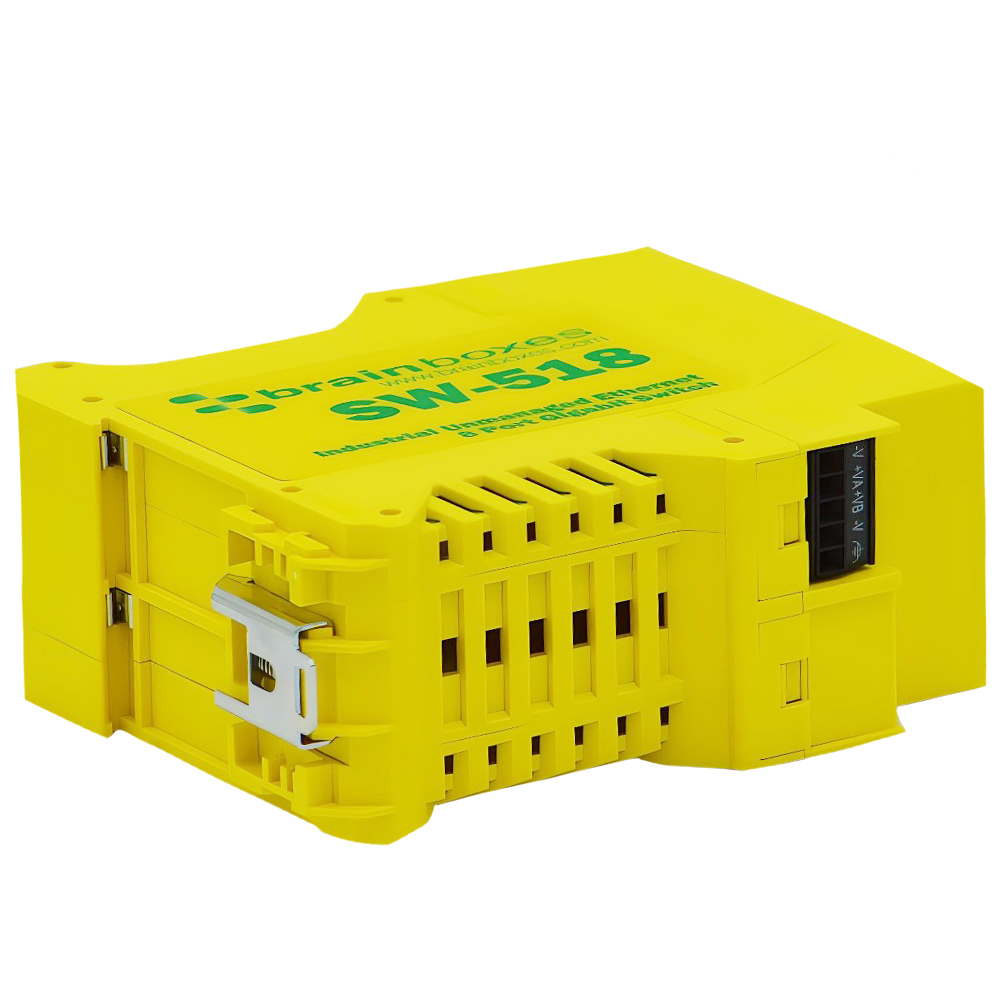

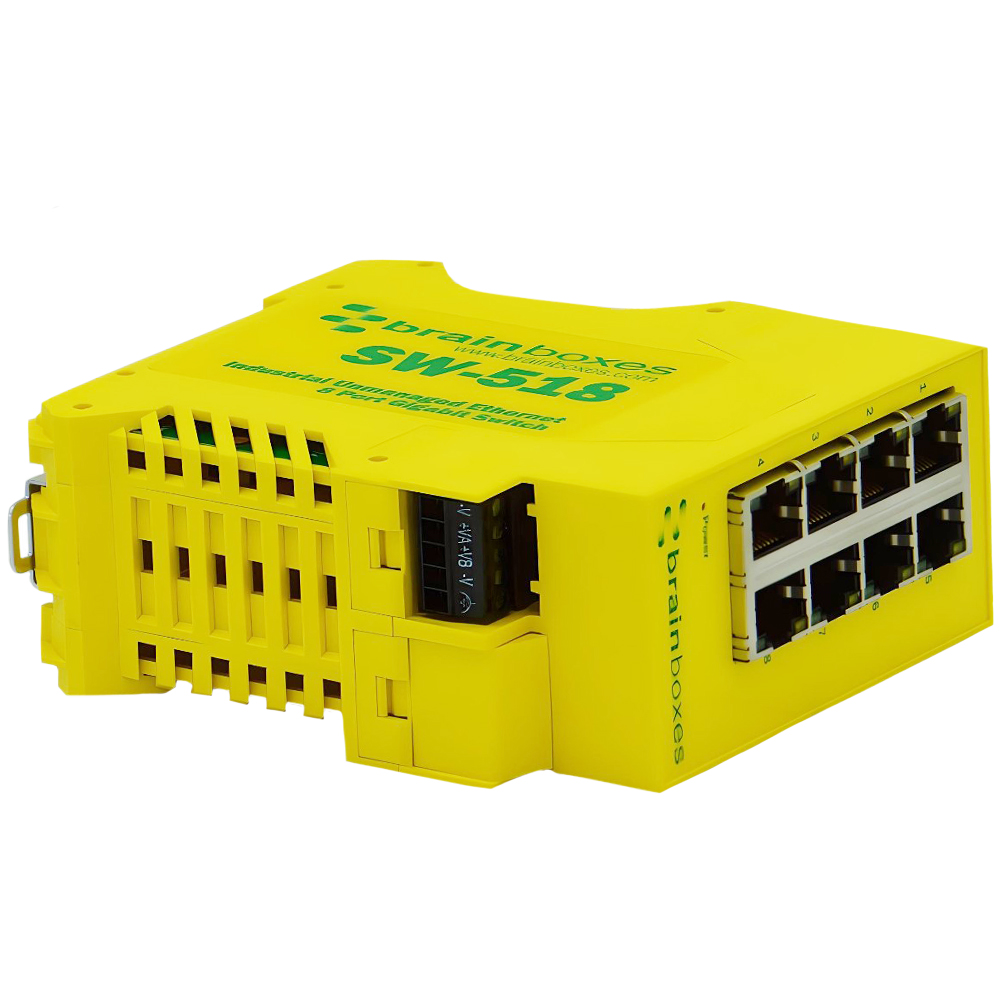

- Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

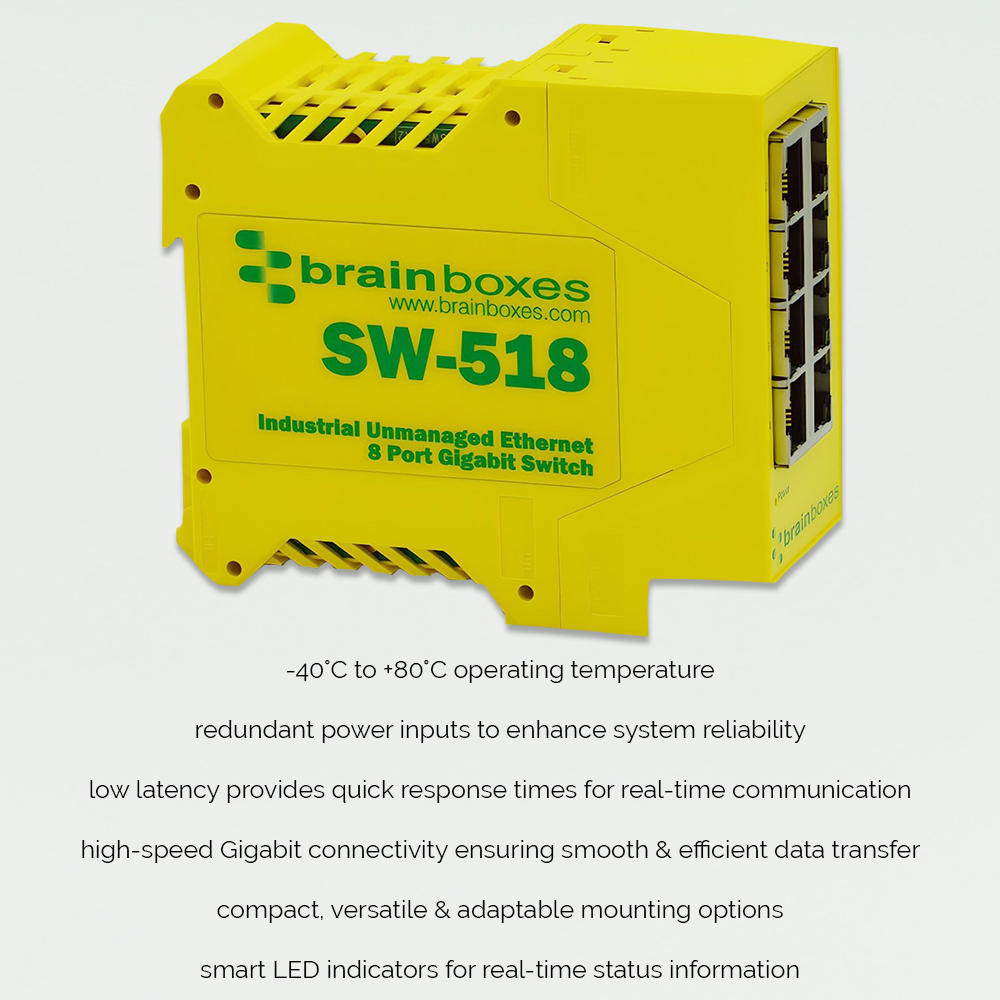

Key Features

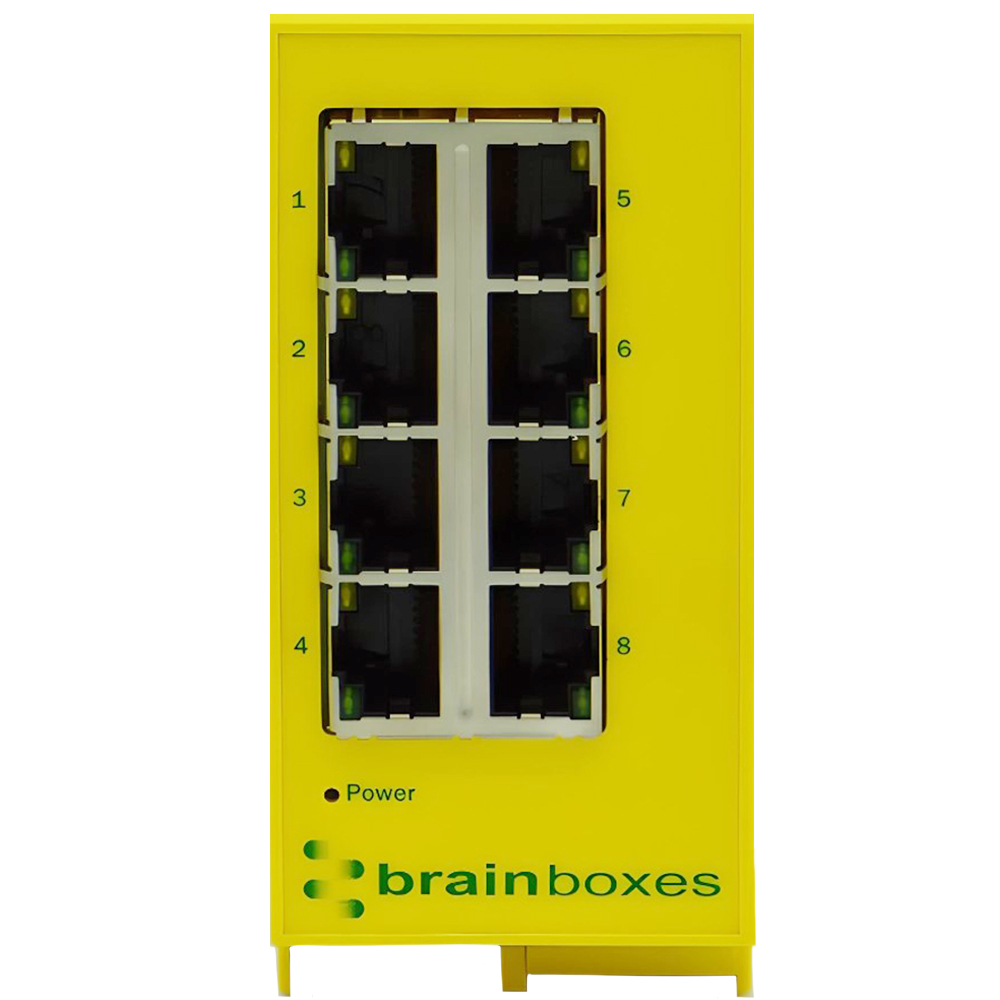

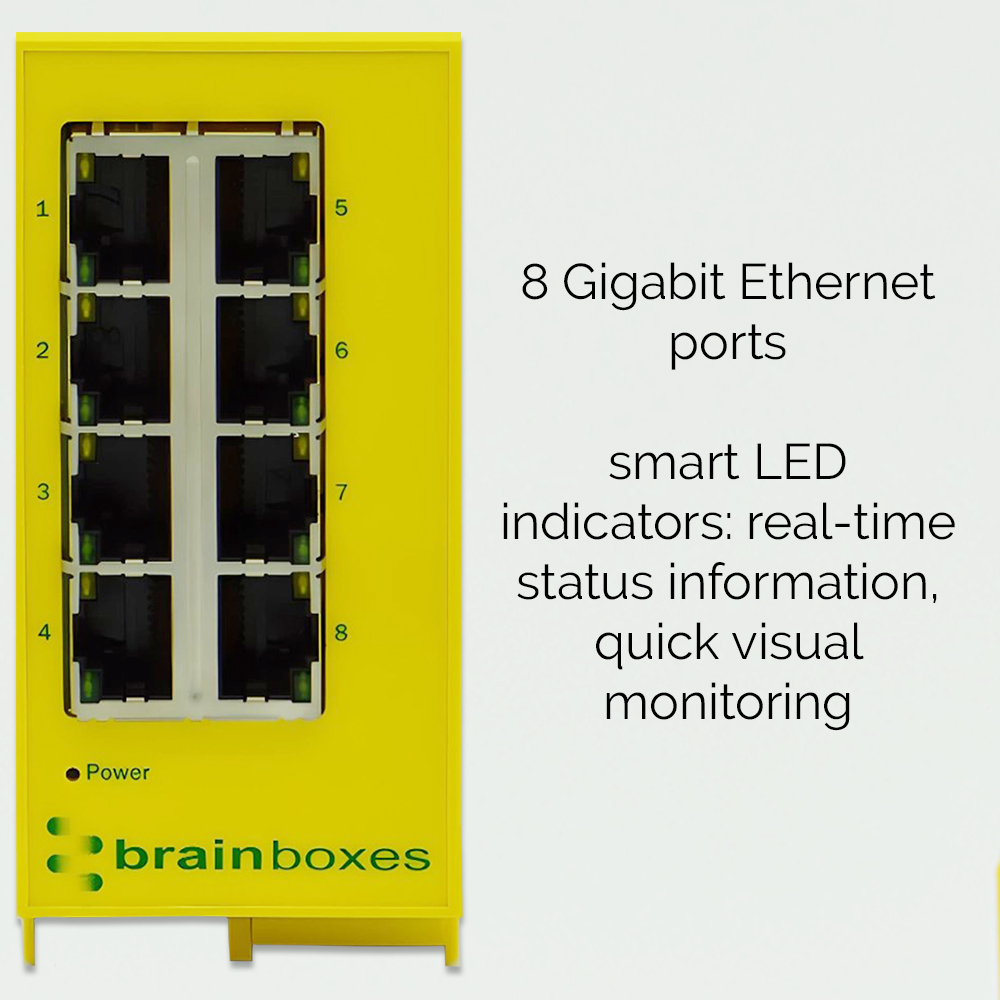

- 8x Port Gigabit Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +5 V to +30 VDC
- Low Power Consumption: 6.5 W Max
- Operating Temperature Rating: -40 °C to +80 °C / -40 °F to +176 °F

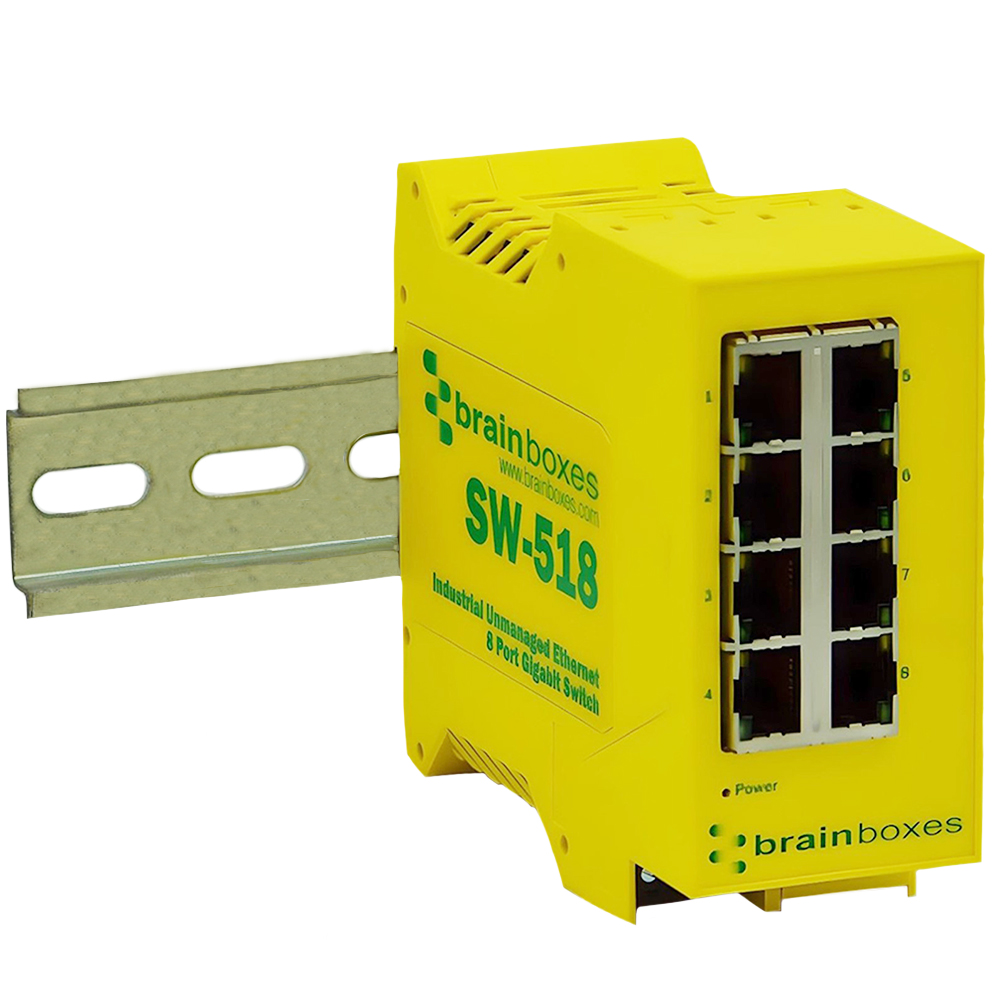

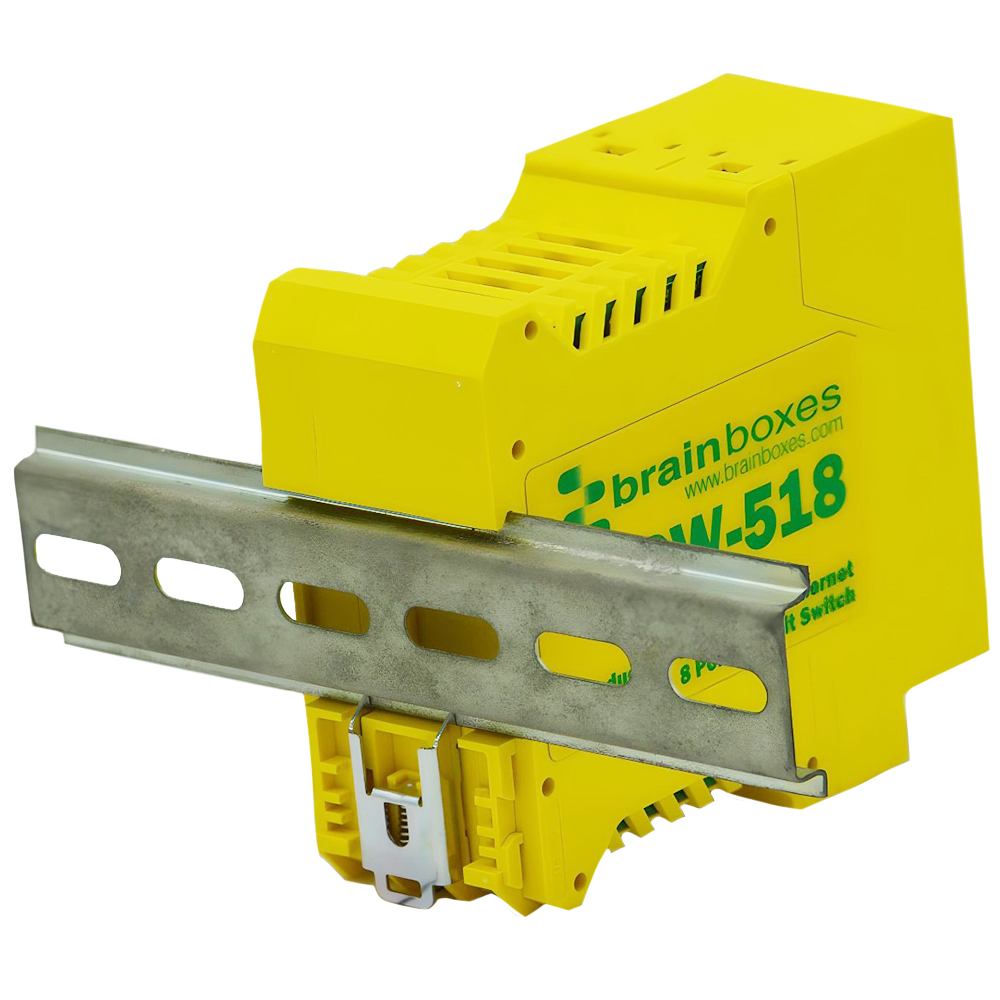

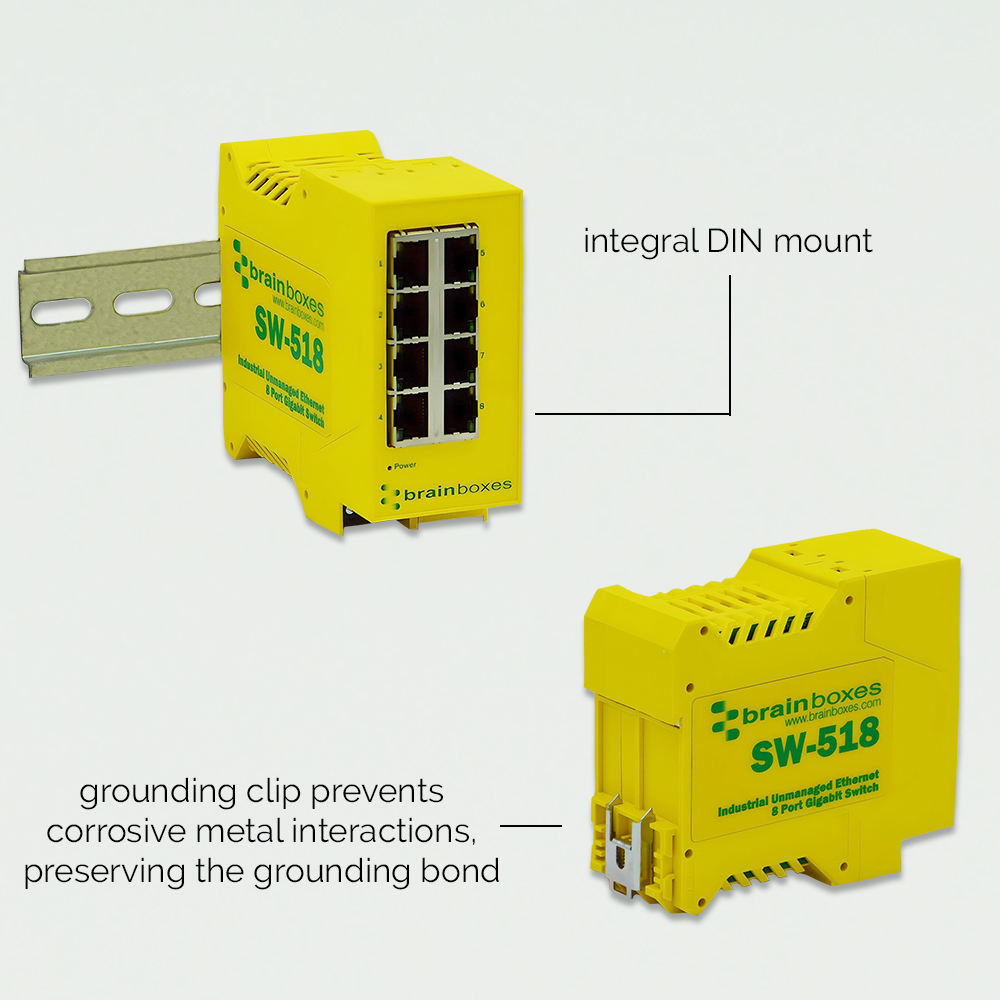

- DIN rail mountable
Technical Specifications
Ethernet
| Ethernet Ports | 8 |
| Ethernet Speed | 10/100/1000 Gigabit Ethernet |
| PoE | No |
Power
| Power Input | 5V - 30V DC input, reverse polarity protected |
| PoE Power Budget | NA |
General
| Operating Temperature Range | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | DIN rail mounted |
| Power Consumption | 6.5W Max: 216mA@+30VDC |
| Product Weight | 0.18 kg, 6.35 ounces |
| Product Dimensions | 116.2 x 99 x 45.3 mm, 4.57 x 3.90 x 1.78 inches |
| Packaged Weight | 0.26 kg, 9.17 ounces |
| Packaged Dimensions | 160 x 135 x 49mm, 6.30 x 5.31 x 1.93 inches |
| GTIN (barcode) | 837324005097 |
Interface
| Ethernet | By providing a number of Ethernet interfaces, you can take advantage of pre-existing infrastructure, allowing for easy expansion of an existing Ethernet based network. |
