SW-118

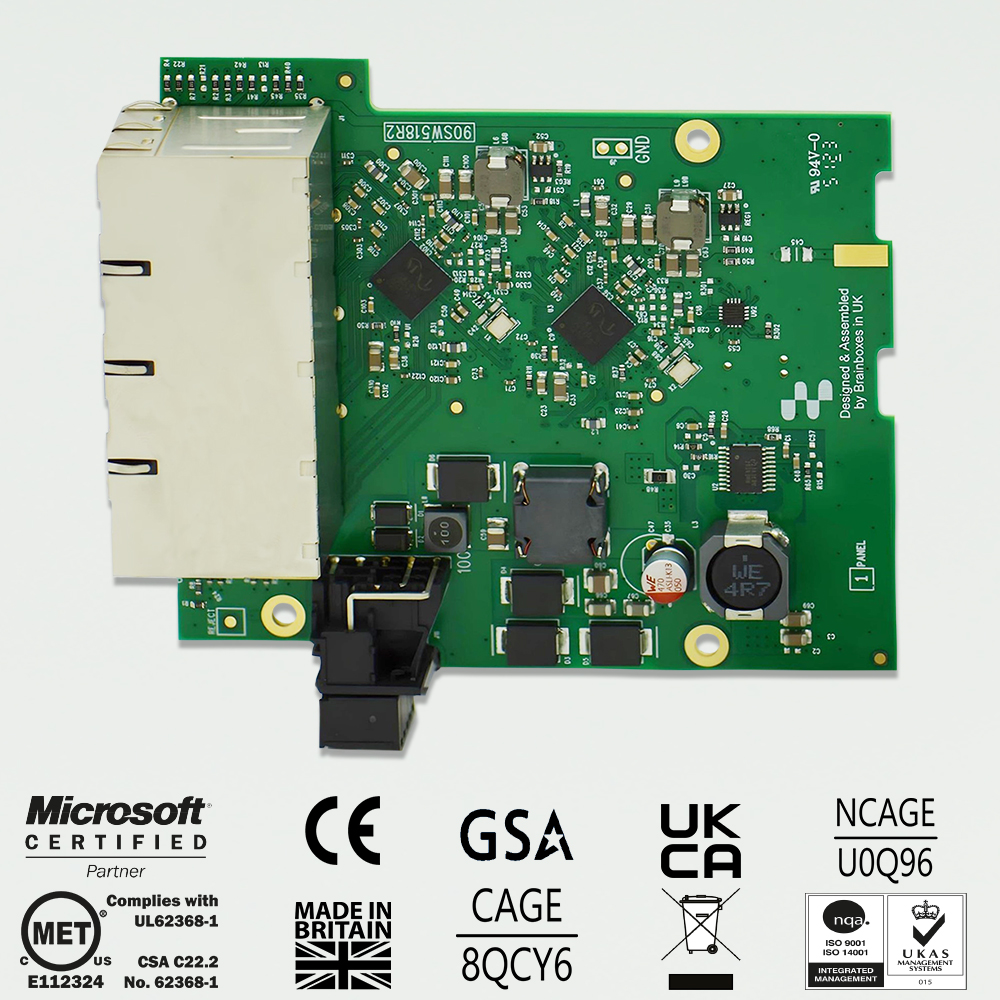

Embedded Industrial 8 Port Gigabit Ethernet Switch
Description

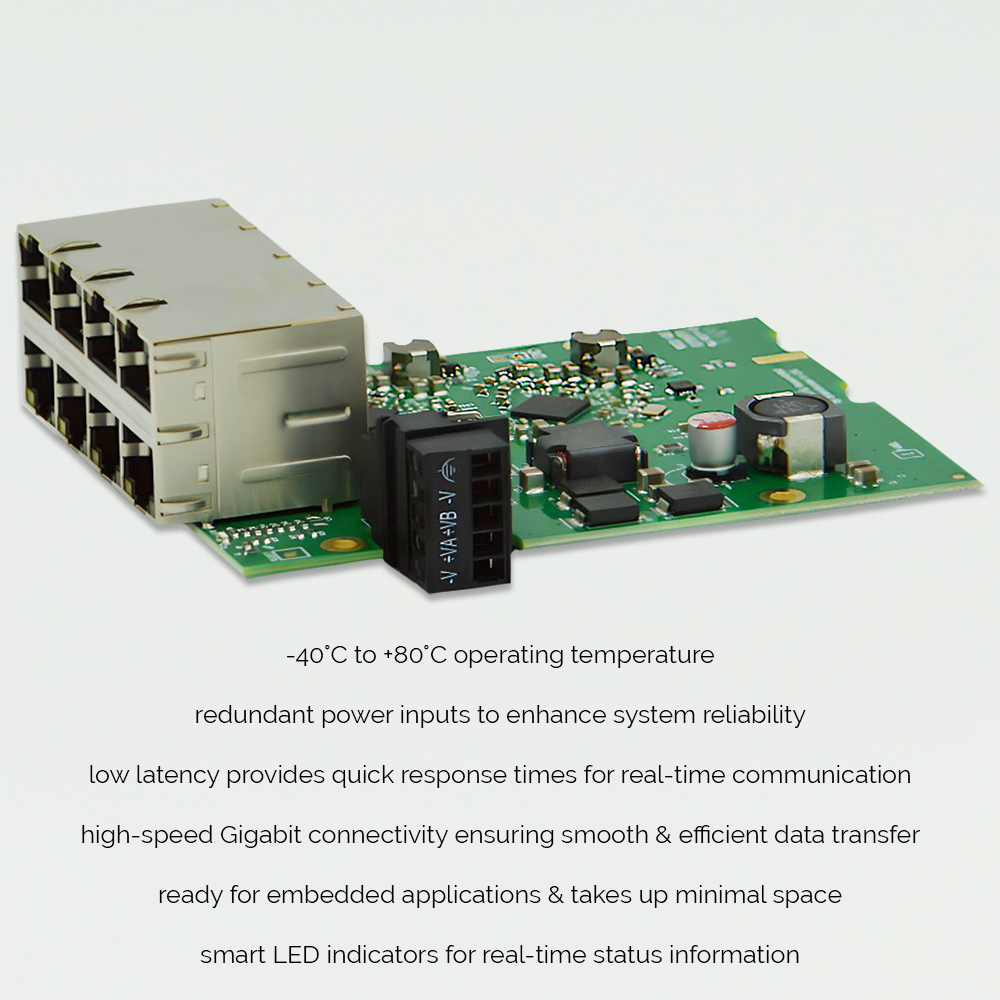

Industrial 8 Port Gigabit unmanaged Ethernet switch.
- Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor.

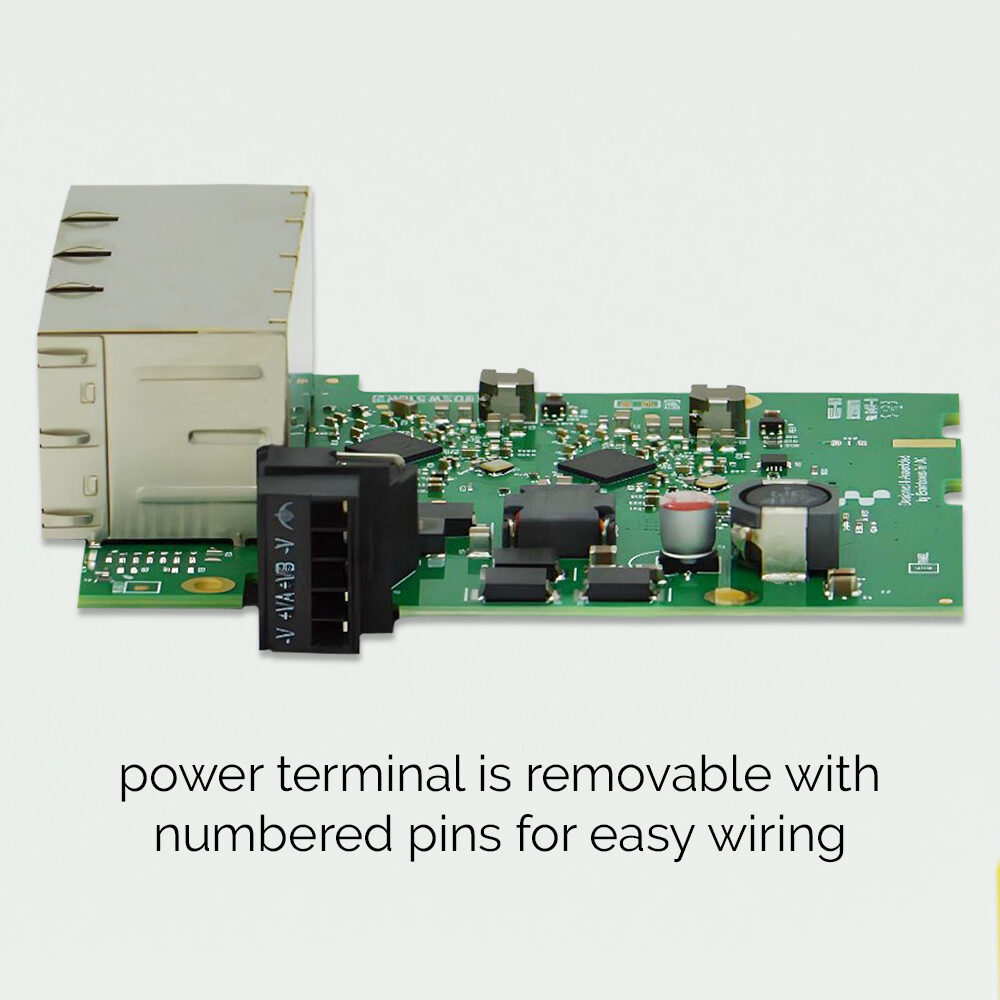

- Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Key Features

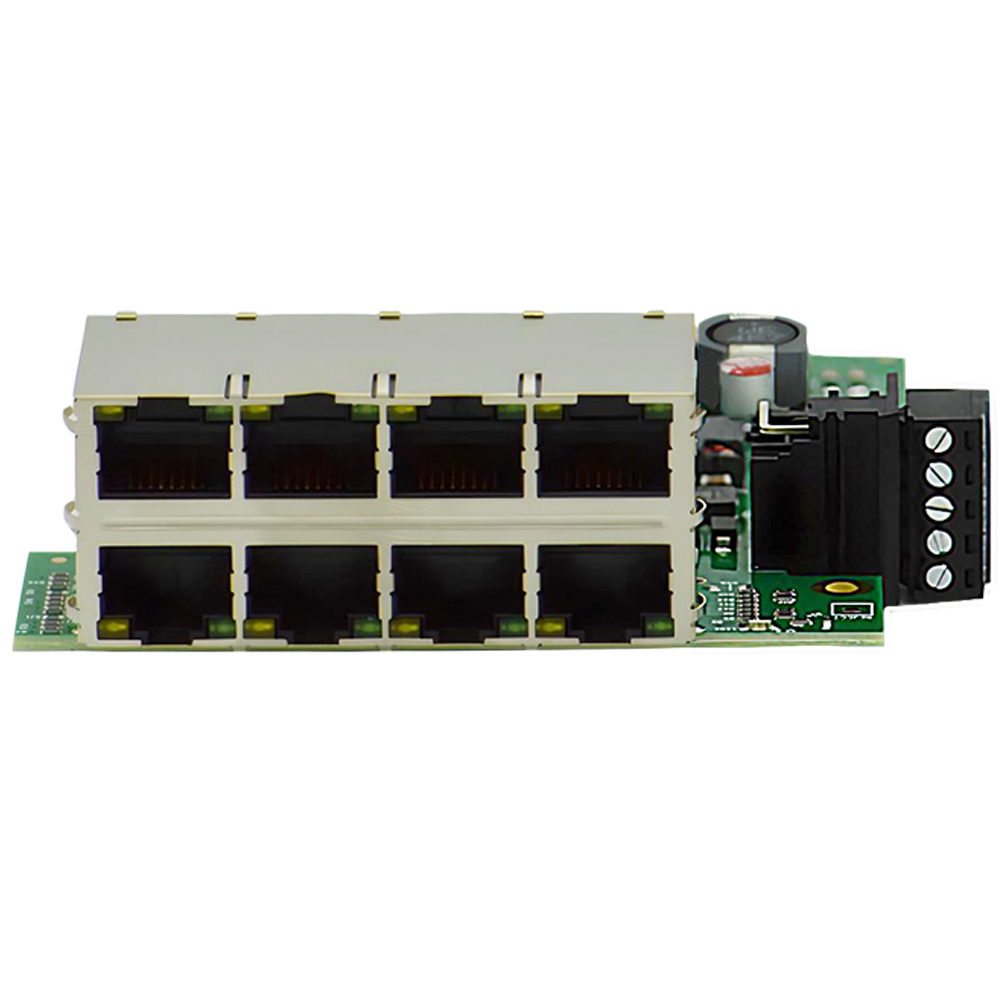

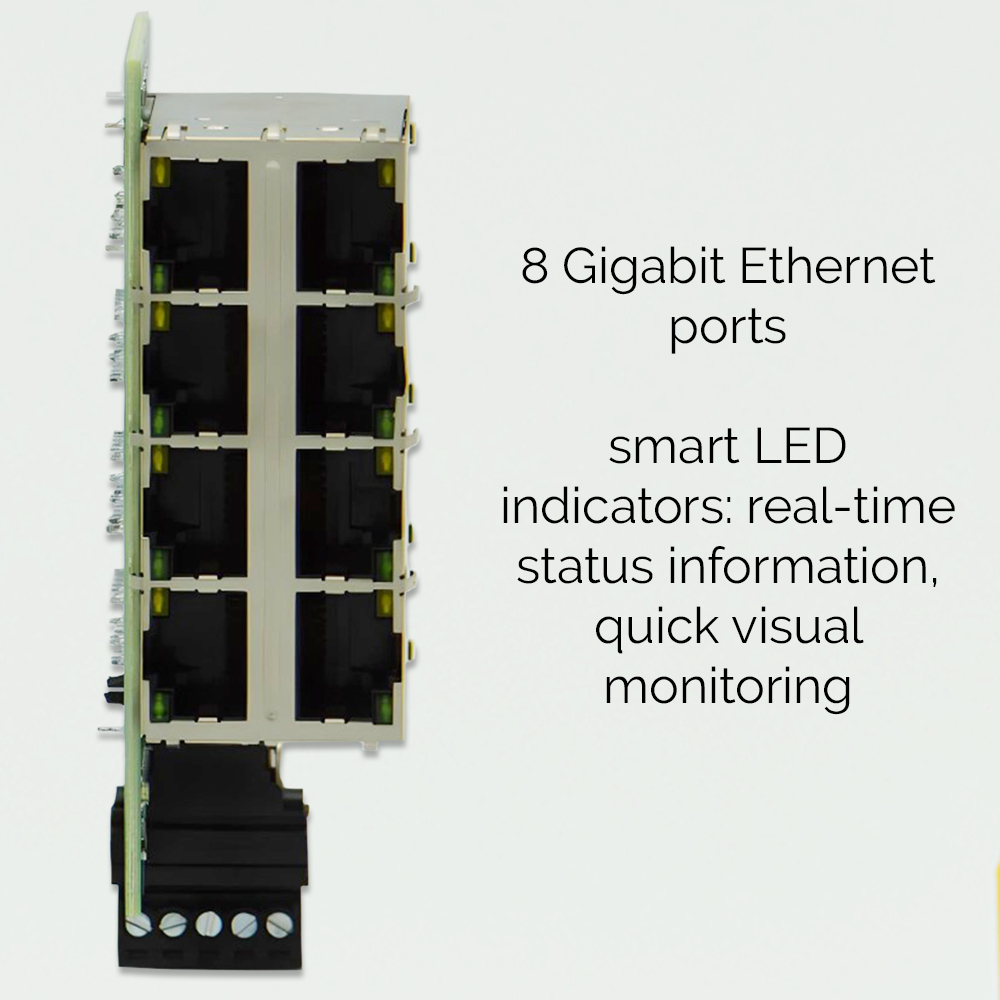

- 8x Port Gigabit Unmanaged Ethernet Switch
- Dual Redundant, Wide Power Input: +5 V to +30 VDC
- Low Power Consumption: 6.5 W Max
- Operating Temperature Rating: -40 °C to +80 °C / -40 °F to +176 °F
- Embeddable
Technical Specifications
Ethernet
| Ethernet Ports | 8 |
| Ethernet Speed | 10/100/1000 Gigabit Ethernet |
| PoE | No |
Power
| Power Input | 5V - 30V DC input, reverse polarity protected |
| PoE Power Budget | NA |
General
| Operating Temperature Range | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 6.5W Max: 216mA@+30VDC |
| Product Weight | 0.10 kg, 3.53 ounces |
| Product Dimensions | 94.8 x 104.2 x 25.5 mm, 3.73 x 4.10 x 1.00 inches |
| Packaged Weight | 0.18 kg, 6.35 ounces |
| Packaged Dimensions | 160 x 135 x 49 mm, 6.30 x 5.31 x 1.93 inches |
| GTIN (barcode) | 837324005134 |
Interface
| Ethernet | By providing a number of Ethernet interfaces, you can take advantage of pre-existing infrastructure, allowing for easy expansion of an existing Ethernet based network. |
