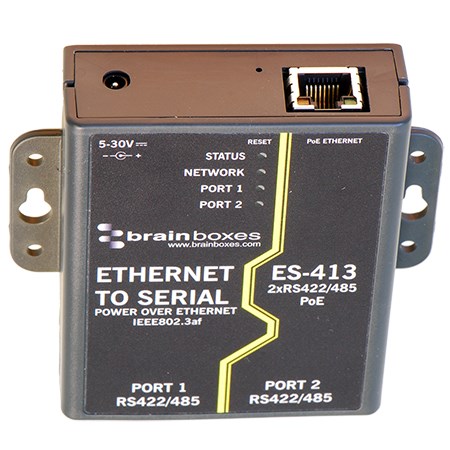

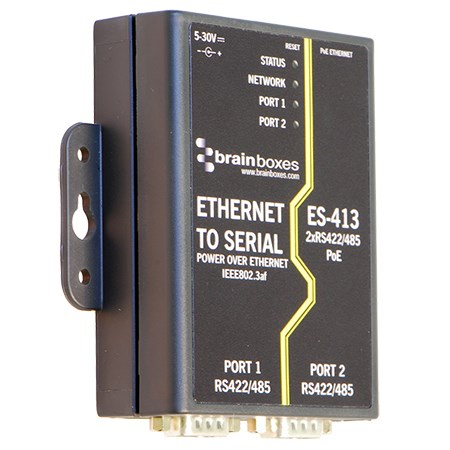

ES-413
2 Port RS422/485 PoE Ethernet to Serial Adapter
Description
Ethernet to Serial device server with Power over Ethernet providing access to two RS422/485 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance.
Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch. Our ES range provides simple instant networked serial ports. RS485 – 1 twisted pair – half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction.
A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed driver gives you local COM ports, retaining existing software applications. Serial Port Tunnelling allows serial cable replacement over any distance, no software required.
Key Features
- 2 Port RS-422/485 with Power over Ethernet IEEE802.3af
- Ethernet to Serial Device Server
- Data rate from 110 to 1,000,000 baud
- User friendly interface, simple to use
- Serial Port Tunnelling allows serial cable replacement over any distance
- Optional DIN rail mounting kit and stand alone power supply
Technical Specifications
Serial Port
| Ports | 2 |
| Protocol | RS422/485 |
| Connector | DB9 Connector - 9 Pin Male |
| Tx FIFO Size | 256 |
| Rx FIFO Size | 32 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) |
Serial Port Settings
| Max Baud Rate | 1,000,000 (1 MegaBaud) |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Flow Control | RTS/CTS, XON/XOFF |
| Tx/Rx Modes | Full Duplex, Half Duplex Autogating |
Power
| Power Input | Power Over Ethernet OR 5 - 30V DC input, reverse polarity protected |
| Power Over Ethernet | IEEE 802.3af |
| Power Consumption | 2.15W |
General
| Mounting Kit | DIN-Rail Mounting Kit - MK-048 |
| Operating Temperature Range | -10 °C to +60 °C / 14°F to +140 °F |
| Product Weight | 0.131 kg |
| Product Dimensions | 101 x 100 x 27 mm |
| GTIN (barcode) | 837324003789 |
Operating System Compatibility
| Supported Systems | Communicate with device over TCP from any OS, Windows family supported |
