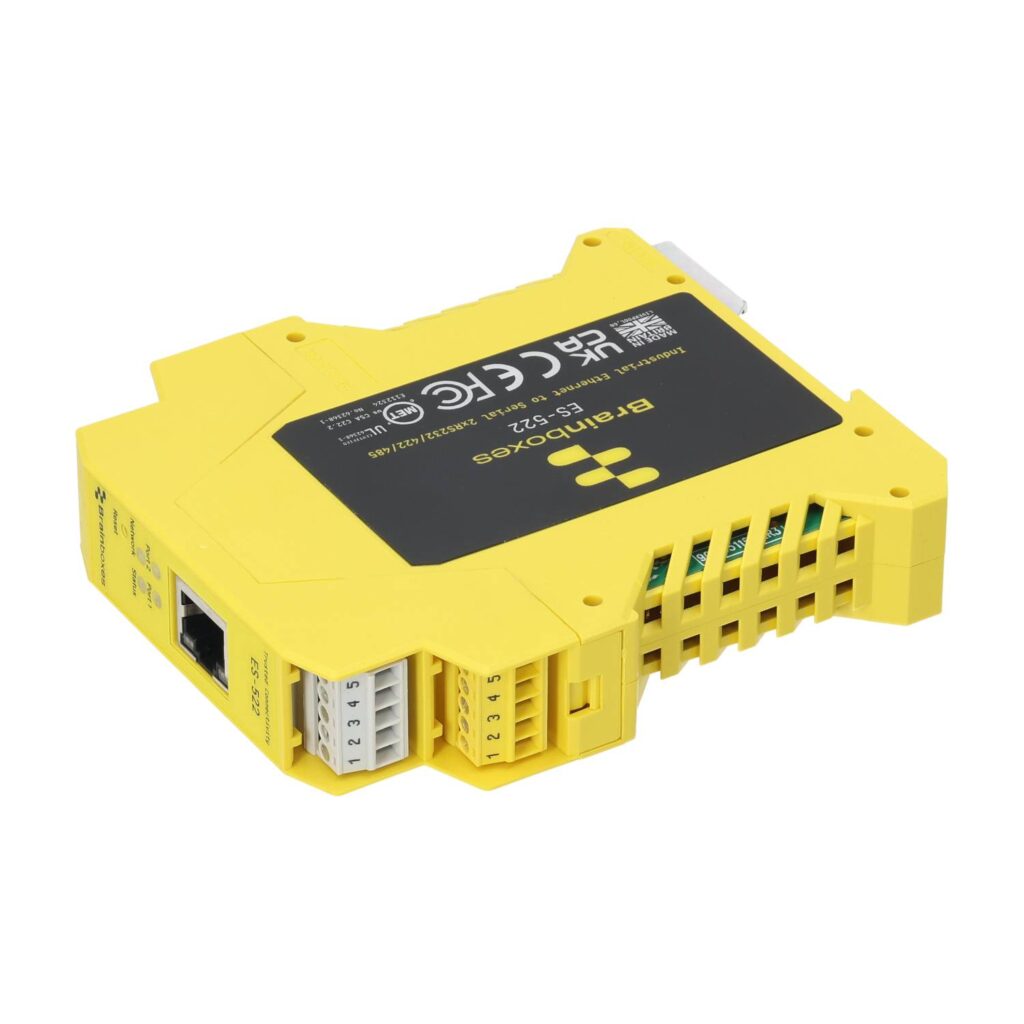

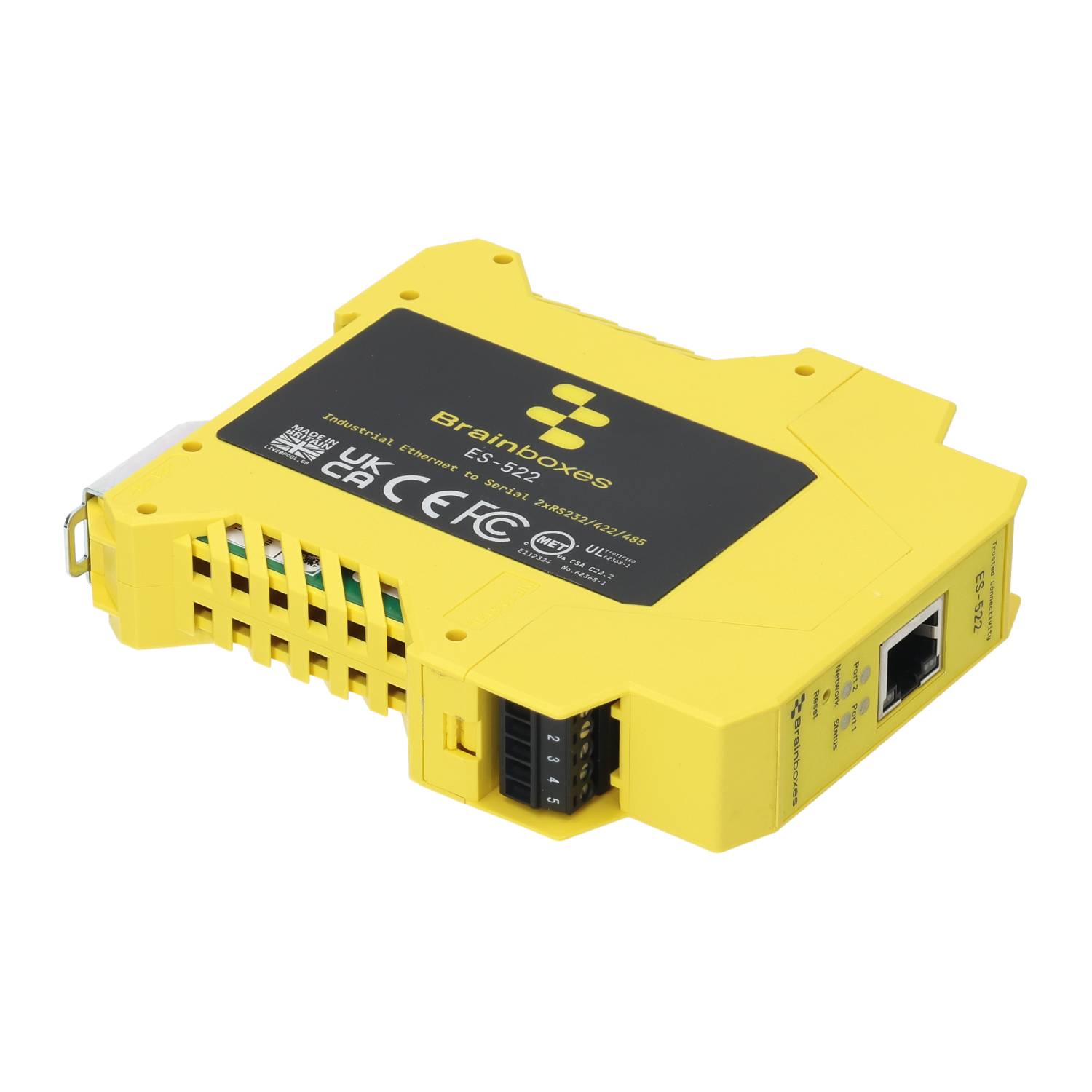

ES-522
Industrial Ethernet to Serial 2xRS232/422/485
Description
Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim ‘end on’ case and integral DIN rail mount.
Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications.
Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.
Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Key Features
- 2 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
- Data rate from 110 to 921,600 baud (1 MegaBaud)
- Removable, colour-coded, number terminal blocks
- Install Virtual Com ports in Windows, tunnel over ethernet between 2 devices, communicate over TCP/IP or use Software APIs
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- -40°C to +80°C Operating Temperature range

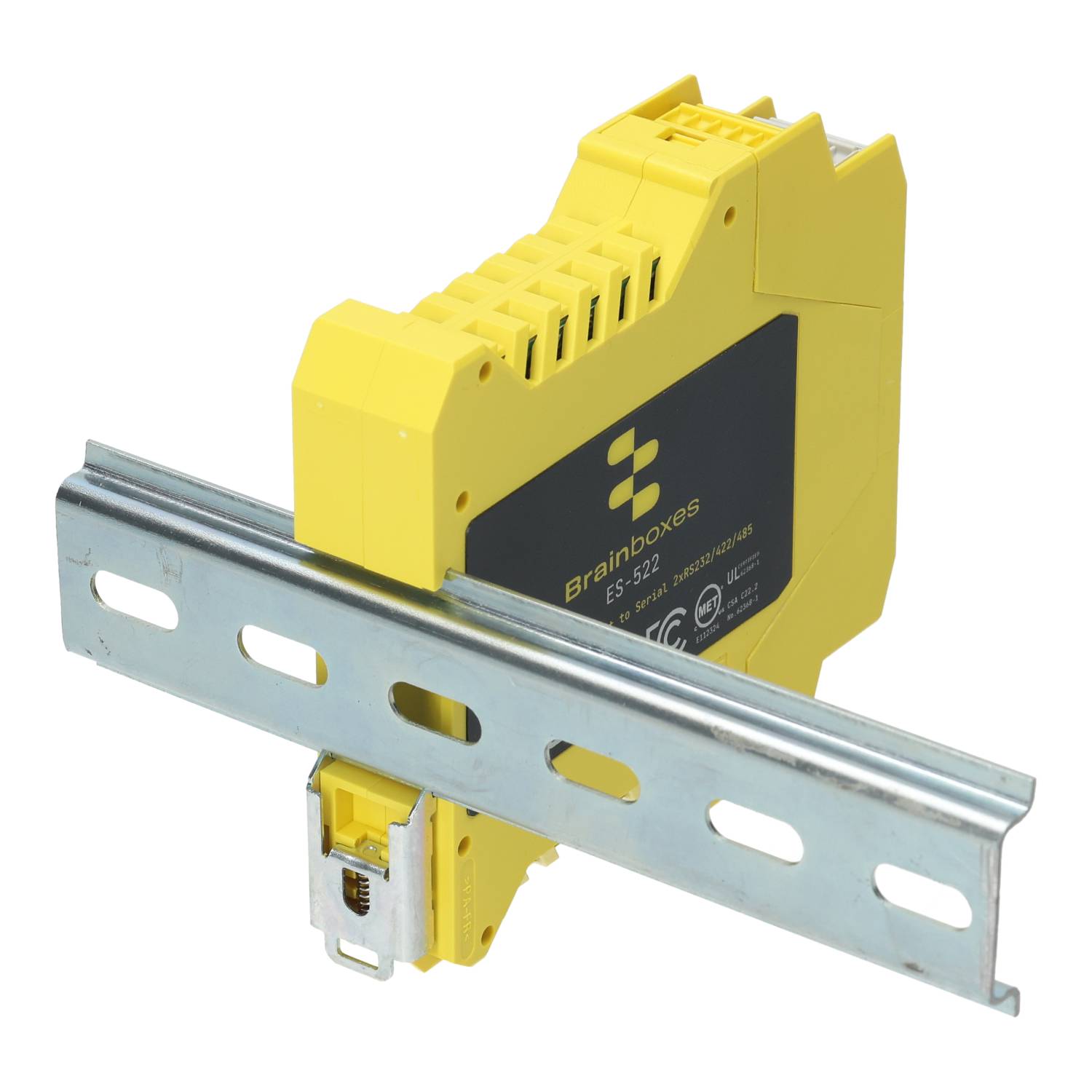

- Robust, Slim Design, Integrated DIN rail mount
Technical Specifications
Serial Port
| Ports | 2 |
| Protocol | Software Selectable as RS232, RS422/485 Full Duplex, or RS485 Half Duplex |
| Connector | Removable Screw terminal block connector - 3.5 mm pitch |
| Tx FIFO Size | 2048 |
| Rx FIFO Size | 2048 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) / EIA - RS232 Standard |
Serial Port Settings
| Max Baud Rate | 1,000,000 (1 MegaBaud) |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1, 1.5 or 2 |
| Flow Control | XON/XOFF Software handshake or RTS/CTS hardware handshake |
| Tx/Rx Modes | Point to Point (RS232), Full Duplex, Half Duplex Autogating, Hardware Autogating |
Power
| Power Input | 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected |
| Power Over Ethernet | No |
| Power Consumption | 1.4 Watt typical 60mA@24V - 2.9 Watt Max |
General
| Mounting Kit | Integrated DIN rail clip |
| PCB Layers | 4 |
| Operating Temperature Range | -40 °C to +80 °C / -40 °F to +176 °F |
| Product Weight | 0.113 kg |
| Product Dimensions | 115 x 105 x 23 mm |
| Packaged Weight | 0.206 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324002614 |
Operating System Compatibility
| Supported Systems | Microsoft Windows family operating systems and Linux |
