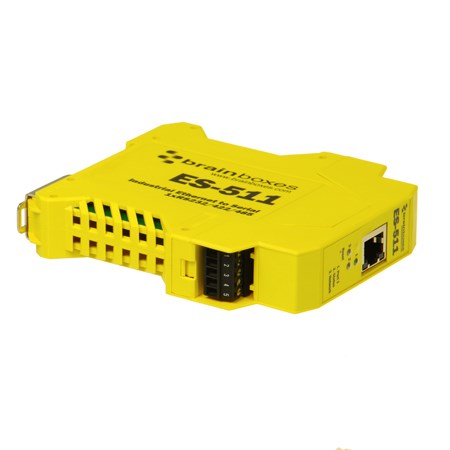

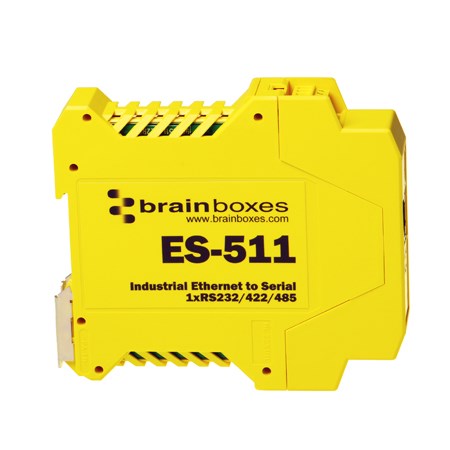

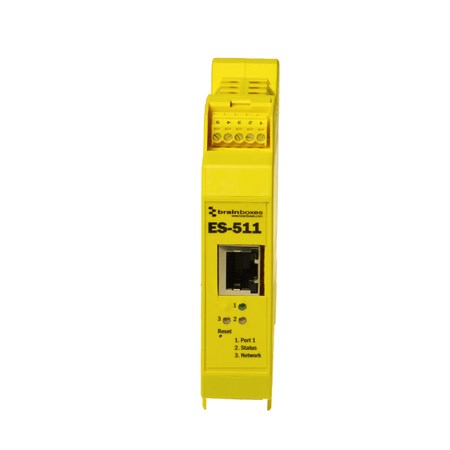

ES-511
Industrial Ethernet to Serial 1xRS232/422/485
Description
Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-511 has removable Screw Terminals Blocks for easy wiring, a slim ‘end on’ case and integral DIN rail mount.
Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance.
Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments.
Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Key Features
- 1 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- Install Virtual Com ports, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
- Data rate from 110 to 1,000,000 baud (1 MegaBaud)

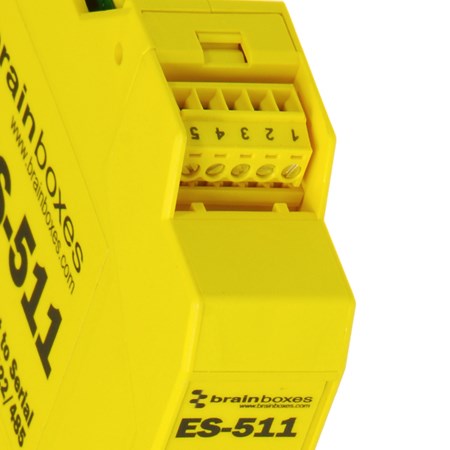

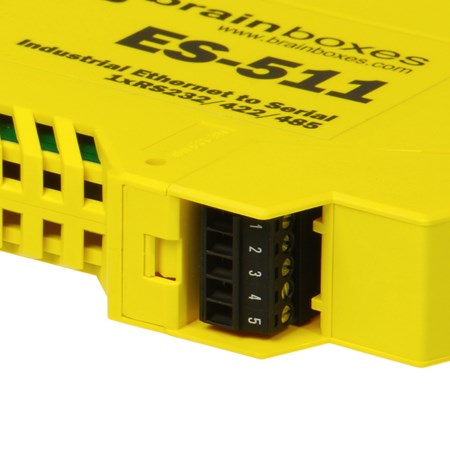

- Removable, colour-coded, number terminal blocks
- -40°C to +80°C Operating Temperature range

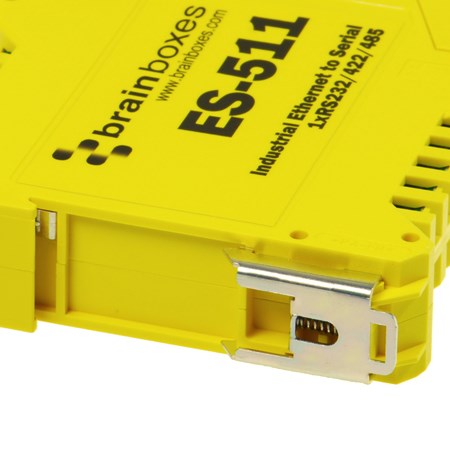

- Robust, Slim Design, Integrated DIN rail mount
Technical Specifications
Serial Port
| Ports | 1 |
| Protocol | Software Selectable as RS232, RS422/485 Full Duplex, or RS485 Half Duplex |
| Connector | Removable Screw terminal block connector - 3.5 mm pitch |
| Tx FIFO Size | 2048 |
| Rx FIFO Size | 2048 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) / EIA - RS232 Standard |
Serial Port Settings
| Max Baud Rate | 1,000,000 (1 MegaBaud) |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1, 1.5 or 2 |
| Flow Control | XON/XOFF Software handshake or RTS/CTS hardware handshake |
| Tx/Rx Modes | Point to Point (RS232), Full Duplex, Half Duplex Autogating, Hardware Autogating |
Power
| Power Input | 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected |
| Power Over Ethernet | No |
| Power Consumption | 1.4 Watt typical 60mA@24V - 2.9 Watt Max |
General
| Mounting Kit | Integrated DIN rail clip |
| PCB Layers | 4 |
| Operating Temperature Range | -40 °C to +80 °C / -40 °F to +176 °F |
| Product Weight | 0.103 kg |
| Product Dimensions | 115 x 105 x 23 mm |
| Packaged Weight | 0.196 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324002607 |
Operating System Compatibility
| Supported Systems | Windows family and Linux operating systems |
