CC-032
Standard Bracket LPT Printer Serial Flylead (25 Pin Female)
Description

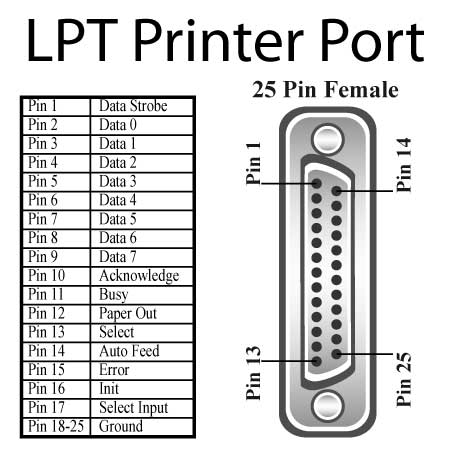

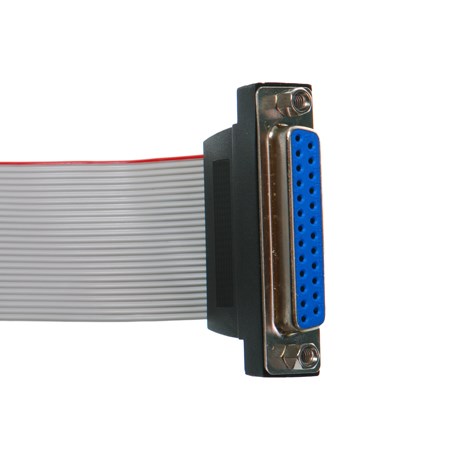

Standard height bracket featuring a 25 pin D-type female LPT printer connector with a 300mm fly lead.

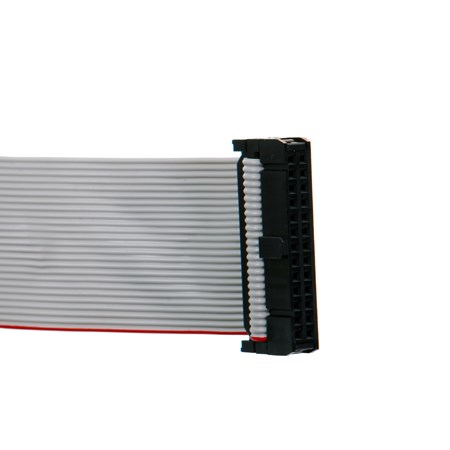

Connects to an internal IDC 2x13 (26-way) ribbon header, enabling parallel printer port expansion from compatible PCI cards or motherboards.
Technical Details
- 1x 25 Pin Female D LPT connector
- 300mm ribbon fly lead
- IDC 2x13 (26-way) header connection
- Fully wired parallel connection
- Moulded cable design
- Standard expansion slot bracket
Key Features
- LPT Printer Flylead
- 25 Pin Female D Connector
- 300mm Cable Length
- IDC 26-Way Ribbon Header
- Fully Wired
- Standard Height Bracket
Technical Specifications
Accessory
| Cable Ports | 1 x 25 Pin |
| Cable Wired | Yes |
| Cable Moulded | Yes |
| Cable Length | 300mm |
| Cable Connector | IDC 2x13 (26 Way) Ribbon Header |
| Power Consumption | N/A |
General
| Product Weight | Awaiting |
| Product Dimensions | Awaiting |
| Packaged Weight | 0.042 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324002973 |
