MK-103
Spring Loaded DIN Rail Mount 20mm Width
Description

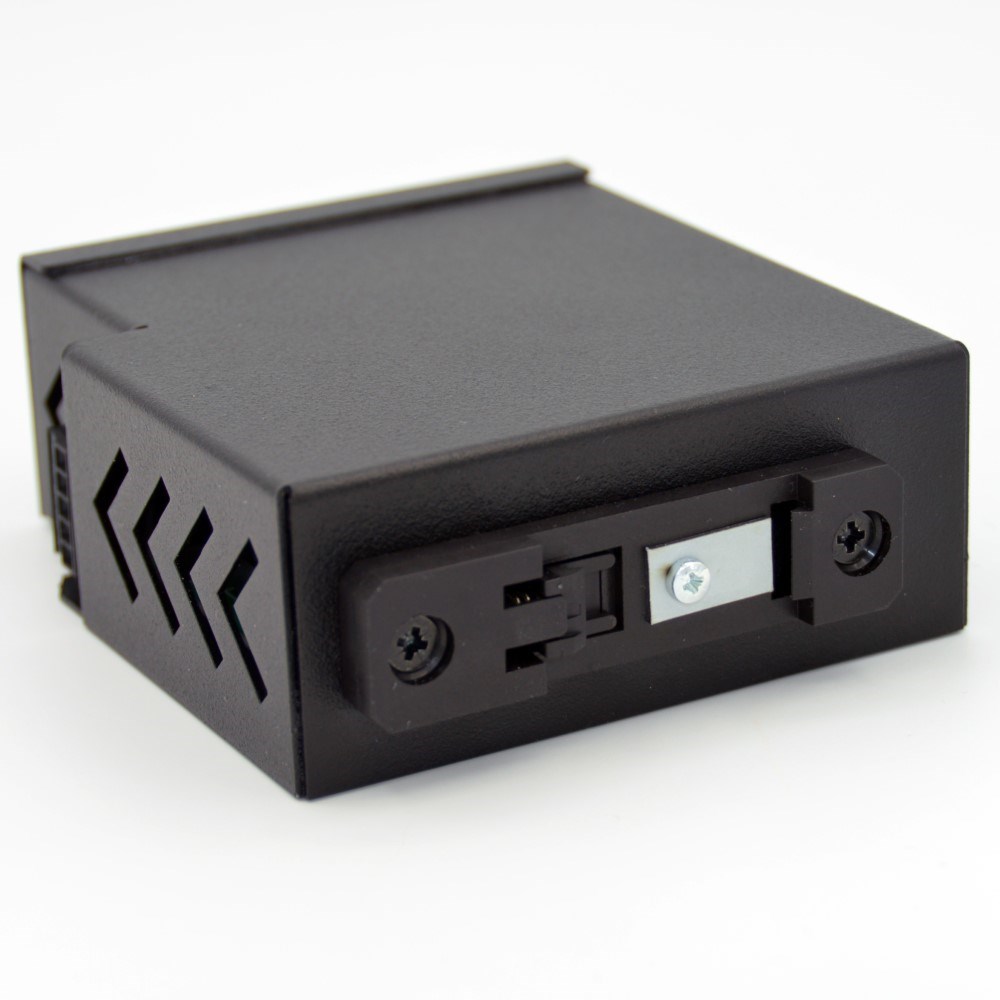

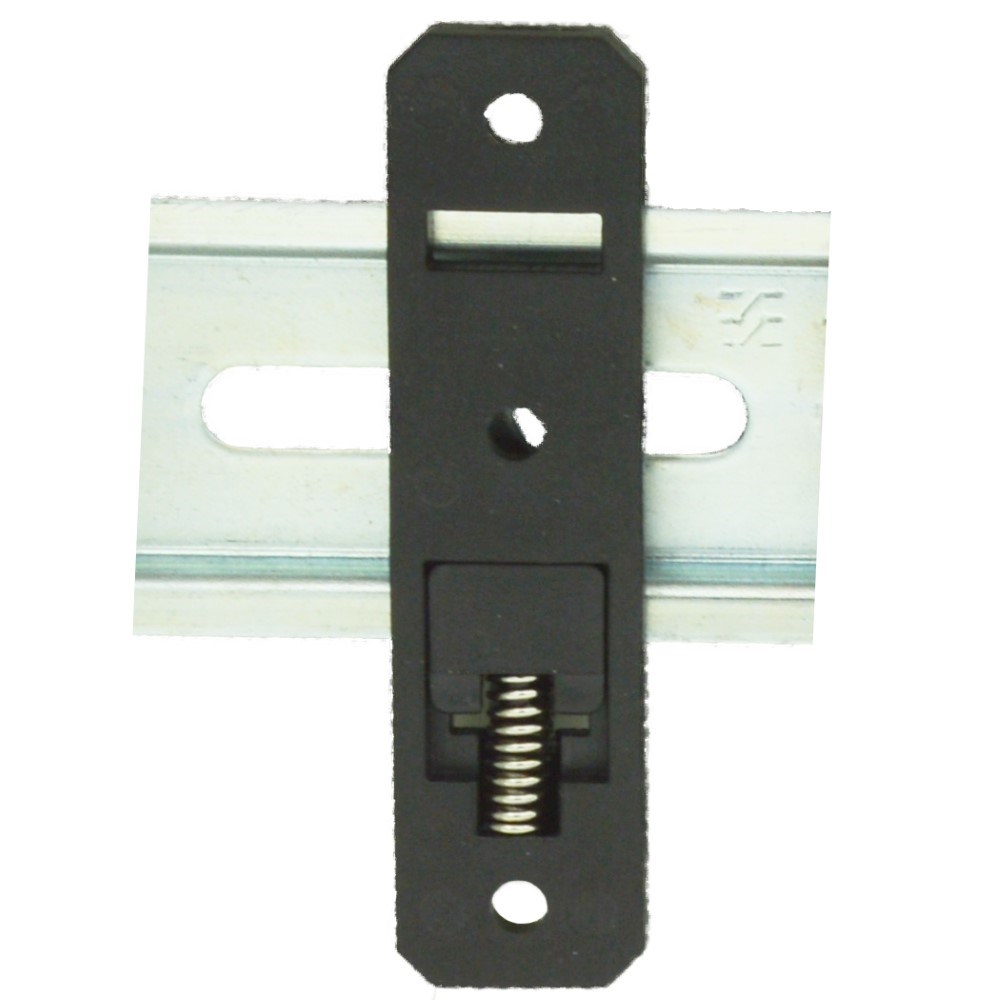

Spring loaded DIN rail mounting clip designed for secure and reliable enclosure installation.
Lightweight design enables quick snap-on installation to standard 35mm and 32mm DIN rails in industrial environments.
Technical Details
- Spring loaded DIN rail mount
- 20mm width design
- Supports 35mm and 32mm DIN rails

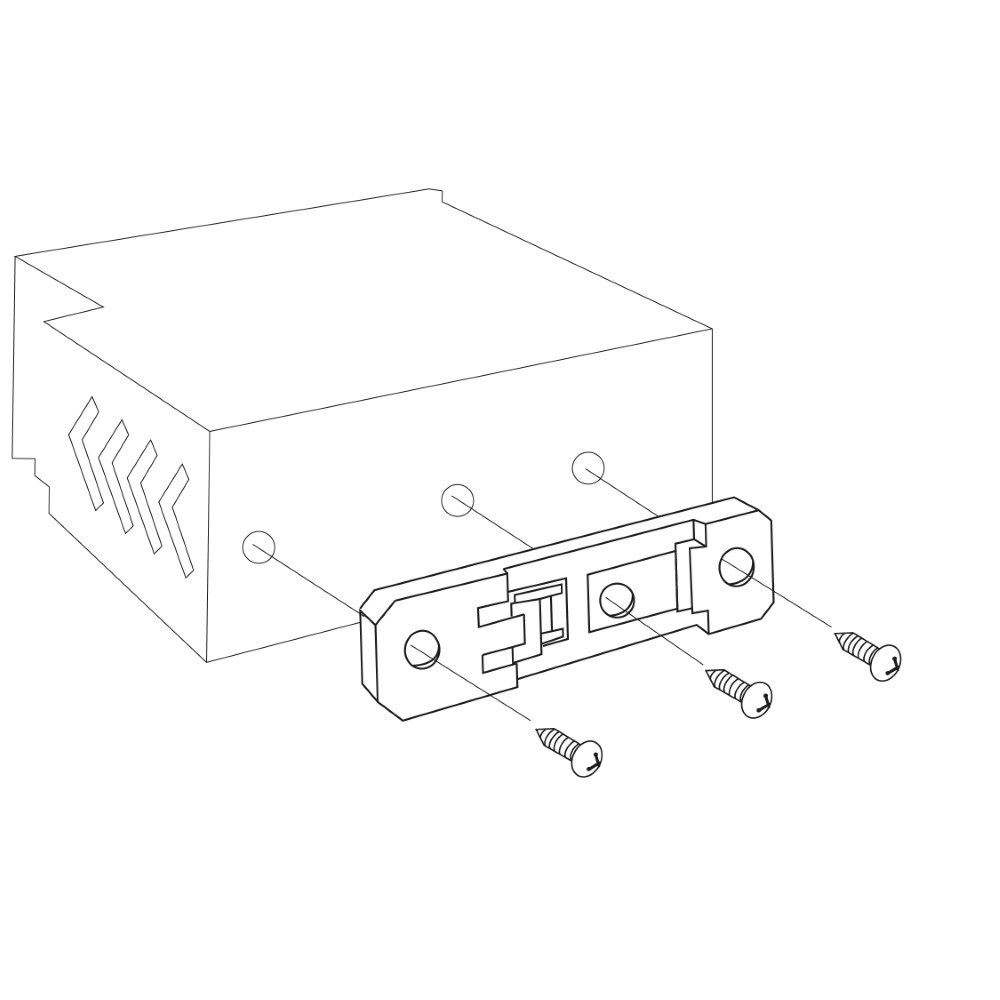

- Simple installation
- Lightweight construction
- Conforms to IEC 60715 standard
- Conforms to EN 50022 European standard
Key Features
- Spring Loaded DIN Mount
- 20mm Width
- 35mm & 32mm Rail Support
- IEC 60715 & EN 50022 Compliant
- Lightweight Design
- Industrial Grade
Technical Specifications
Accessory
| Mount Type | Spring Loaded DIN Rail Mount |
| DIN Rail Compatibility | 35mm and 32mm |
| DIN Rail Dimensions | Width: 10mm, Length: 20mm, Height: 43mm |
| Standards Compliance | IEC 60715, EN 50022 |
| Power Consumption | N/A |
General
| Product Weight | Awaiting |
| Product Dimensions | Awaiting |
| Packaged Weight | 0.043 kg |
| Packaged Dimensions | 120 x 120 x 15 mm |
| GTIN (barcode) | 837324004472 |
