US-346
4 Port RS422/485 USB to Serial Server
Description
USB to Serial server providing four RS422/485 serial ports with data transfer rates up to 921,600 baud. High retention USB socket and IP30 rated case ensure reliable performance in demanding environments.
Drivers support popular operating systems including Windows, Mac OS X and Linux. Includes screw lock power supply and is designed for stable, long-term operation with lifetime warranty and support.
Key Features
- 4 Port RS-422/485 USB to Serial Server
- Data rate from 300 to 921,600 baud
- High Retention USB Socket, IP30 Rated Case
- Drivers for all popular operating systems including Windows 8
- Screw Lock Power Supply (included)
- Lifetime Warranty and Support
Technical Specifications
Serial Port
| Ports | 4 |
| Protocol | RS422/485 |

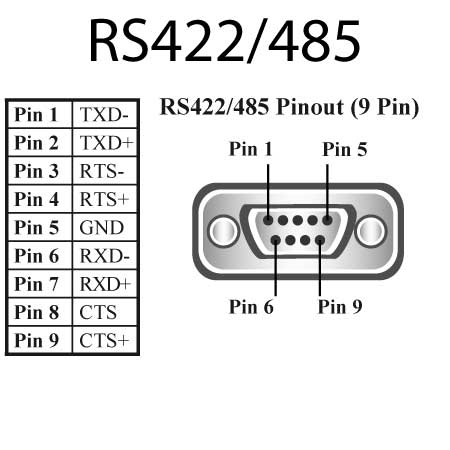

| Connector | DB9 Connector - 9 Pin Male |
| Tx FIFO Size | 128 |
| Rx FIFO Size | 384 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) |
| Cable | USB cable Type A to B (1 metre ~ 3ft) |
Serial Port Settings
| Max Baud Rate | 921,600 |
| Data Bits | 7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
| Tx/Rx Modes | Full Duplex, Half Duplex Autogating |
Power
| Power Input | 5V DC input |
| Power Supply | Global Power Supply - PW-500 |
| Power Consumption | 500mA@5V |
General
| Mounting Accessories | Wall Mounting kit - MK-059; DIN Clip kit - MK-070 |
| PCB Layers | 4 |
| Industrial Standard | Yes |
| Product Weight | 0.675 kg |
| Product Dimensions | 215 x 123 x 34 mm |
| Packaged Weight | 1.100 kg |
| Packaged Dimensions | 300 x 135 x 80 mm |
| GTIN (barcode) | 837324002096 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Mac OS X, Linux |
Interface
| USB 2.0 | 480 Mb/s USB 2.0 data rates |
