US-279
8 Port RS232 USB to Serial Adapter
Description
USB to Serial server providing 8 RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux.
Key Features
- 8 Port RS-232 USB to Serial Server
- Data rate from 300 to 921,600 baud
- High Retention USB Socket, IP30 Rated Case
- Drivers for all popular operating systems including Windows 8
- Screw Lock Power Supply (included)
- Lifetime Warranty and Support
Technical Specifications
Serial Port
| Ports | 8 |
| Protocol | RS232 |

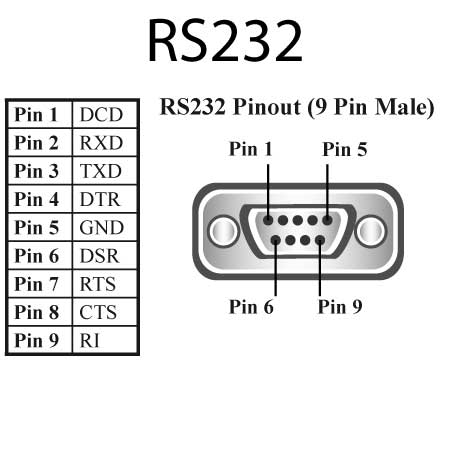

| Connector | DB9 Connector (9 Pin Male) USB Type B High Retention |
| Tx FIFO Size | 128 |
| Rx FIFO Size | 384 |
| Operating Distance | EIA - RS232 Standard |
| Cable | USB cable (Powered via industrial locking connector with 5V 3A power adaptor - supplied) |
Serial Port Settings
| Max Baud Rate | 921,600 |
| Data Bits | 7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
| Tx/Rx Modes | Point to Point |
Power
| Power Input | 5V DC input |
| Power Supply | Global Power Supply - AU, EU, UK, US - PW-500 |
General
| Mounting Accessories | Wall Mounting kit - MK-059, DIN Clip kit - MK-070 |
| PCB Layers | 4 |
| Industrial Standard | Yes |
| Power Consumption | 600mA @ 5V |
| Product Weight | 0.878 kg |
| Product Dimensions | 215 x 123 x 56 mm |
| Packaged Weight | 1.203 kg |
| Packaged Dimensions | 300 x 135 x 80 mm |
| GTIN (barcode) | 837324002133 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Mac OS X, Linux |
Interface
| USB 2.0 | 480 Mb/s USB 2.0 data rates |
