US-235

Ultra 1 Port RS232 USB to Serial Adapter

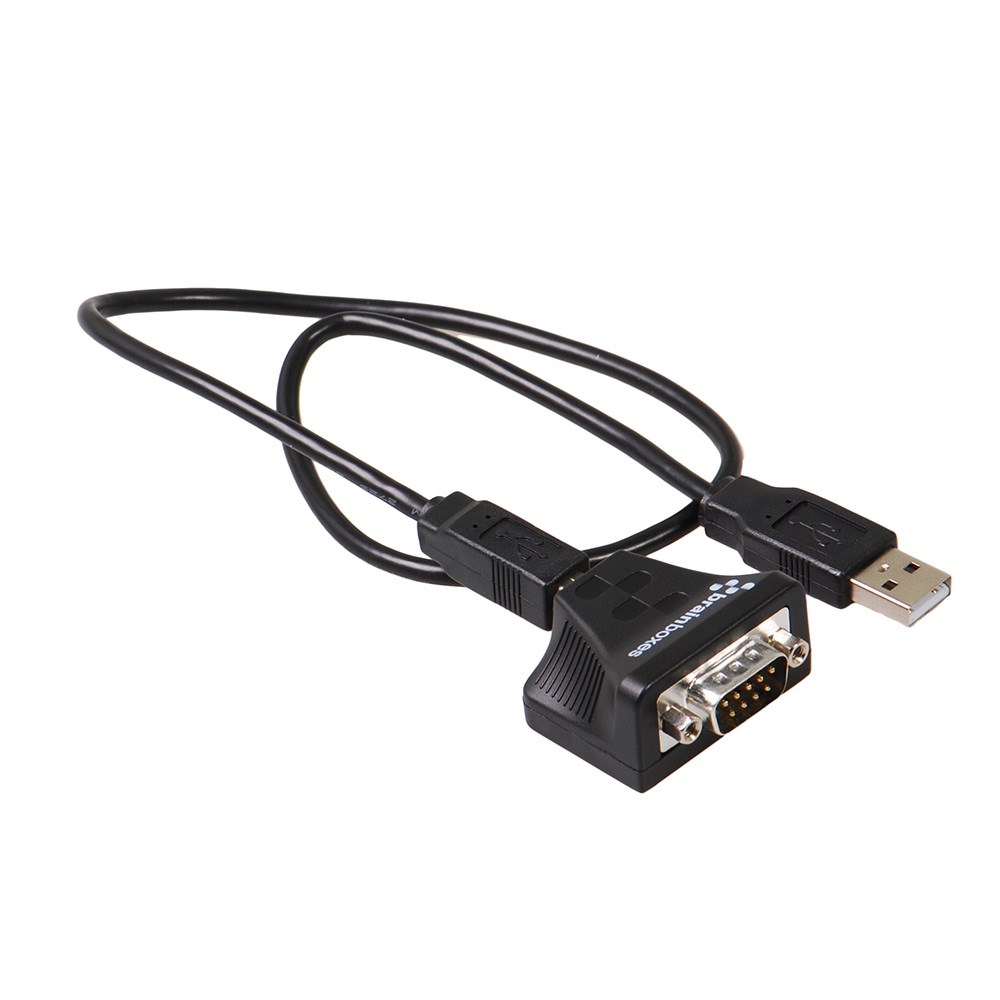

Product image

Description

Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated RS232 serial COM port. High retention USB connector for an unbreakable connection.

Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx FIFOs and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.

We provide our own software drivers – eliminating many common problems with USB to Serial – giving you have a reliable, stable, native com port solution.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.

Key Features

  • 1 Port RS-232 USB to Serial Adapter

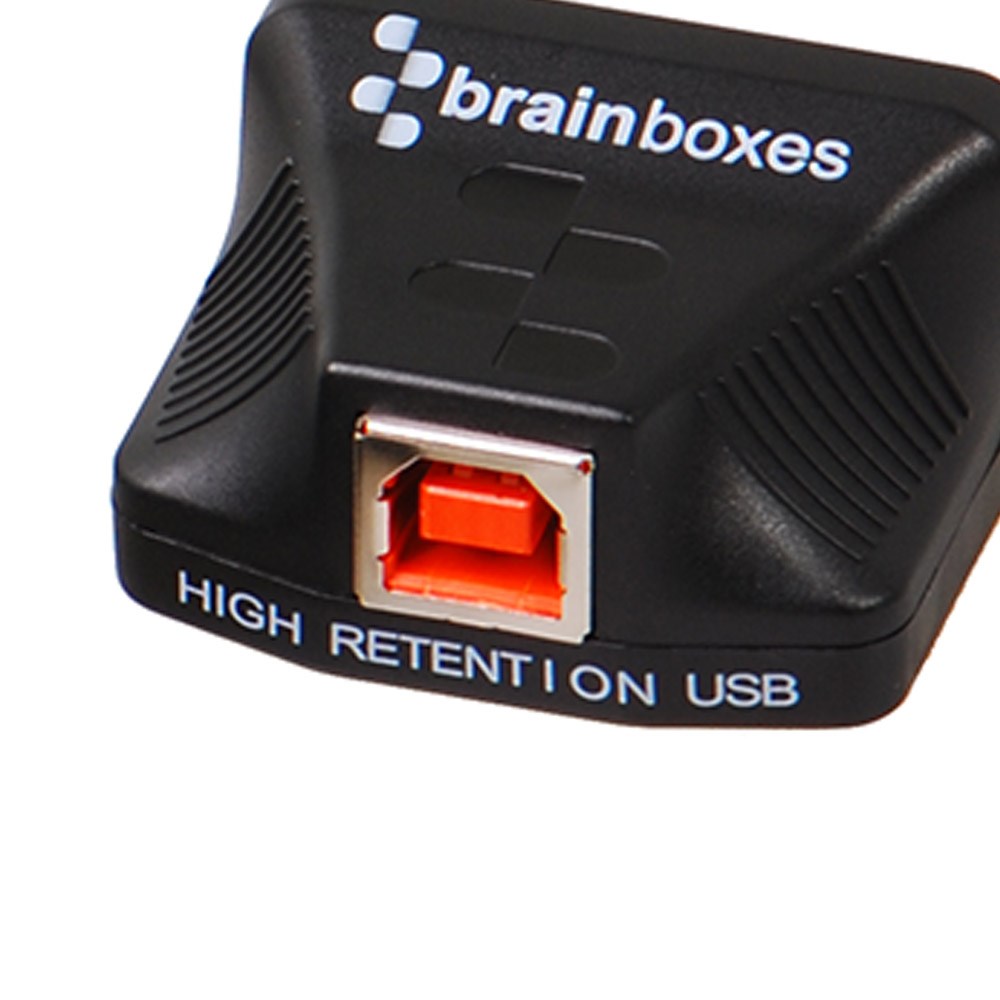

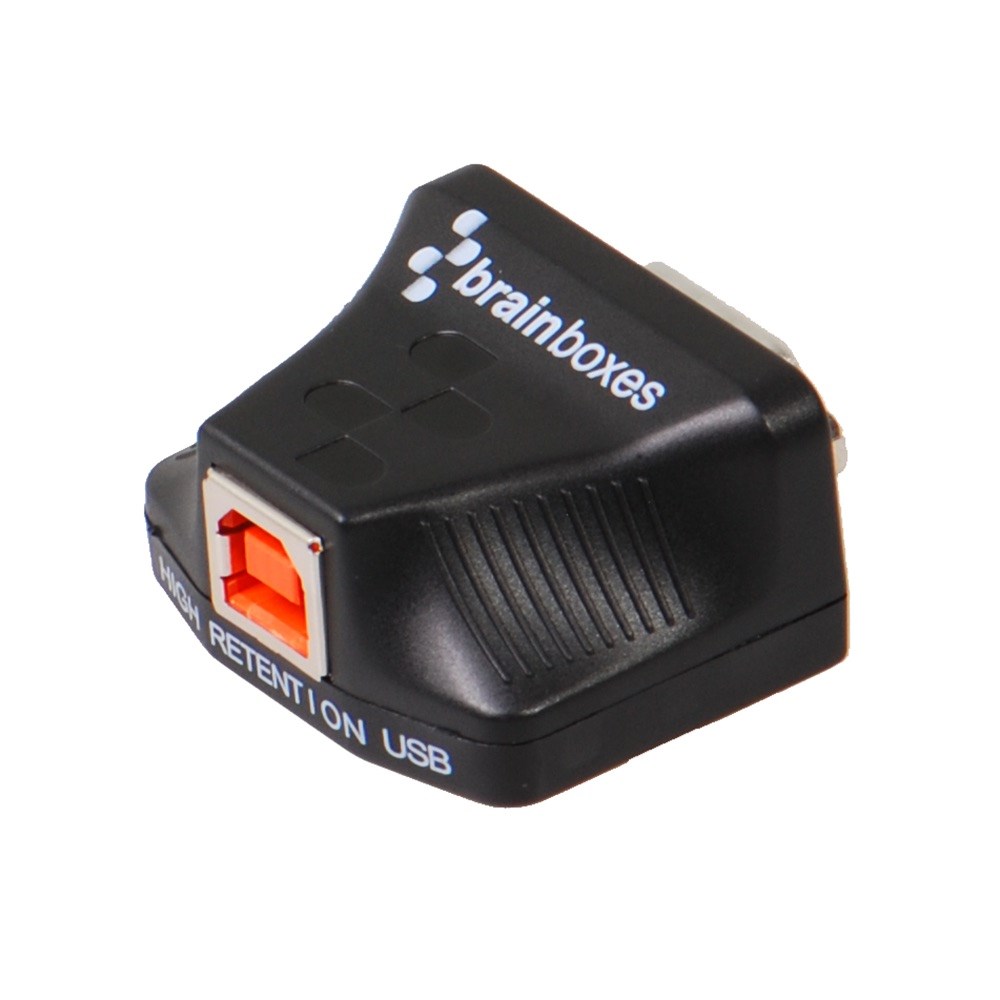

  • High Retention USB connector with 50cm USB cable
  • Our smallest form factor USB to Serial
  • Works where many other USB to Serial devices do not
  • Industrial Specification IP-50 rated -40 °C to +80 °C / -40 °F to +176 °F
  • Lifetime Warranty and Support

Technical Specifications

Serial Port

Ports1
ProtocolRS232

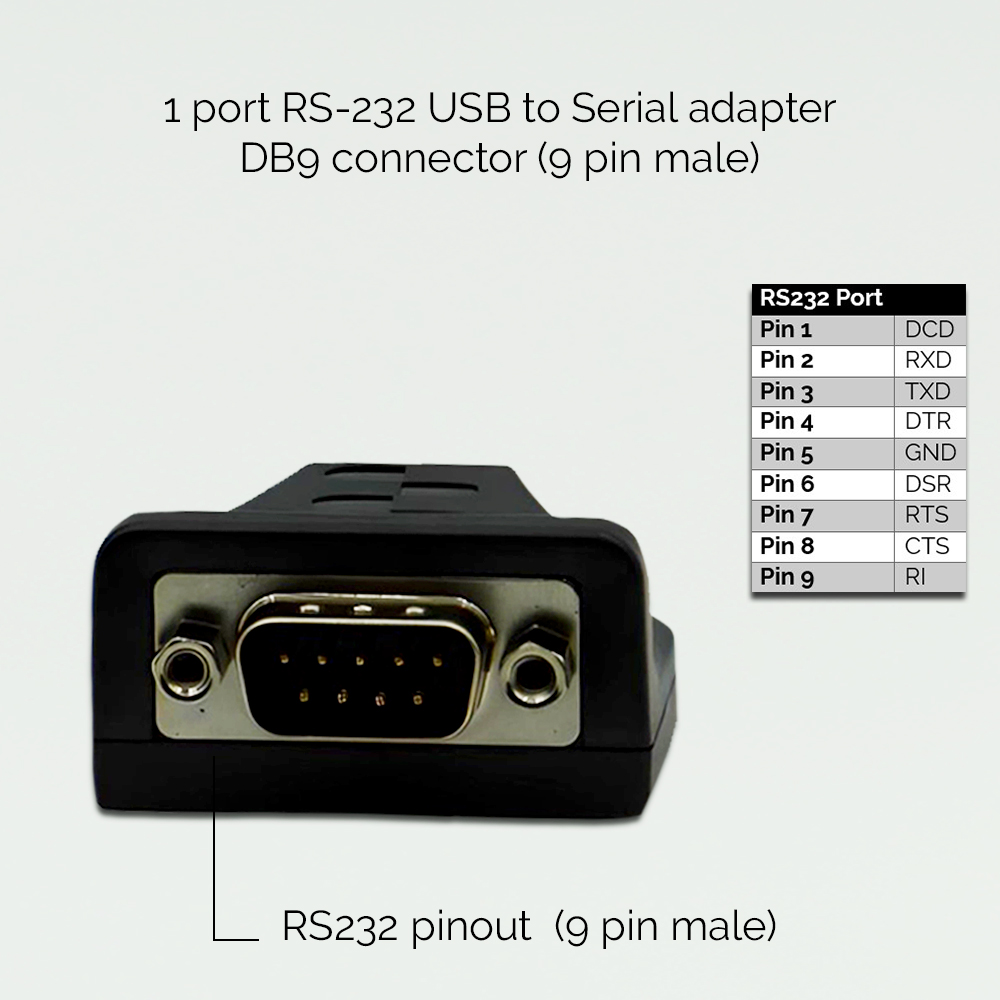

ConnectorDB9 Connector - 9 Pin Male
Tx FIFO Size512
Rx FIFO Size512
Operating DistanceEIA - RS232 Standard

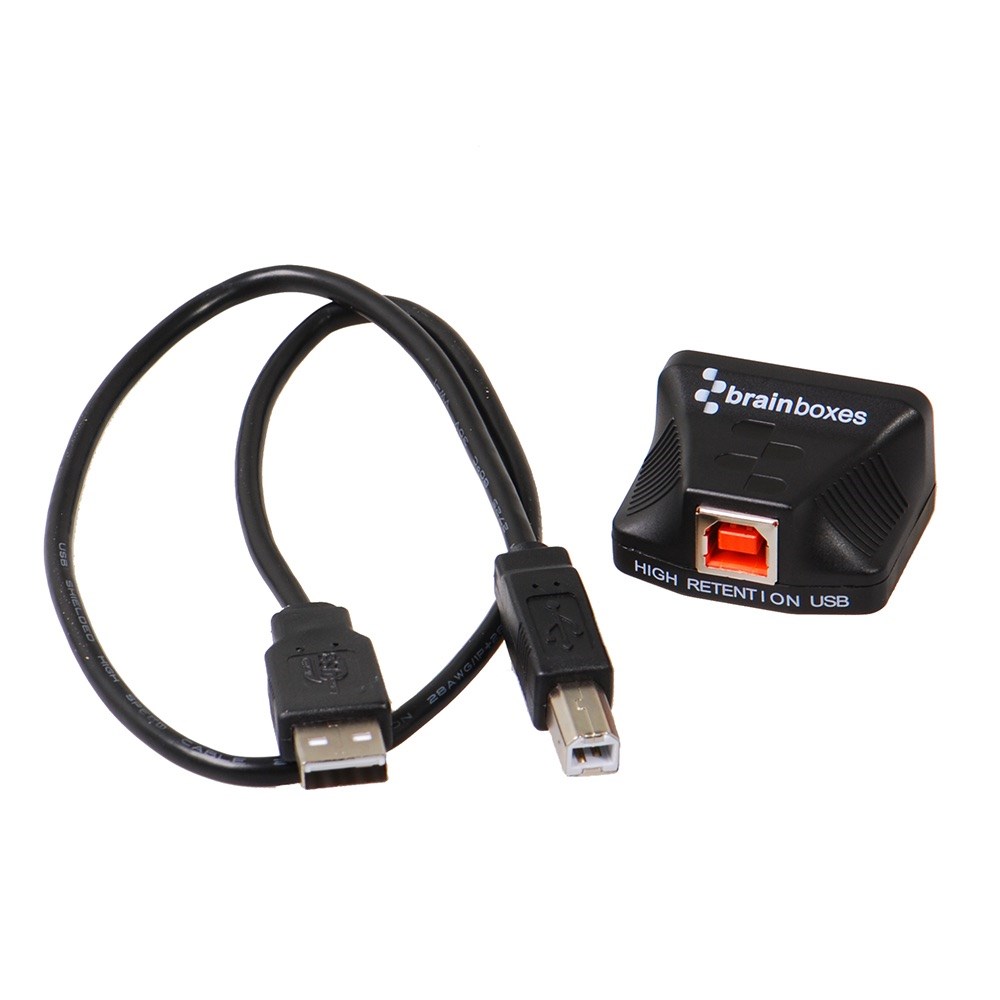

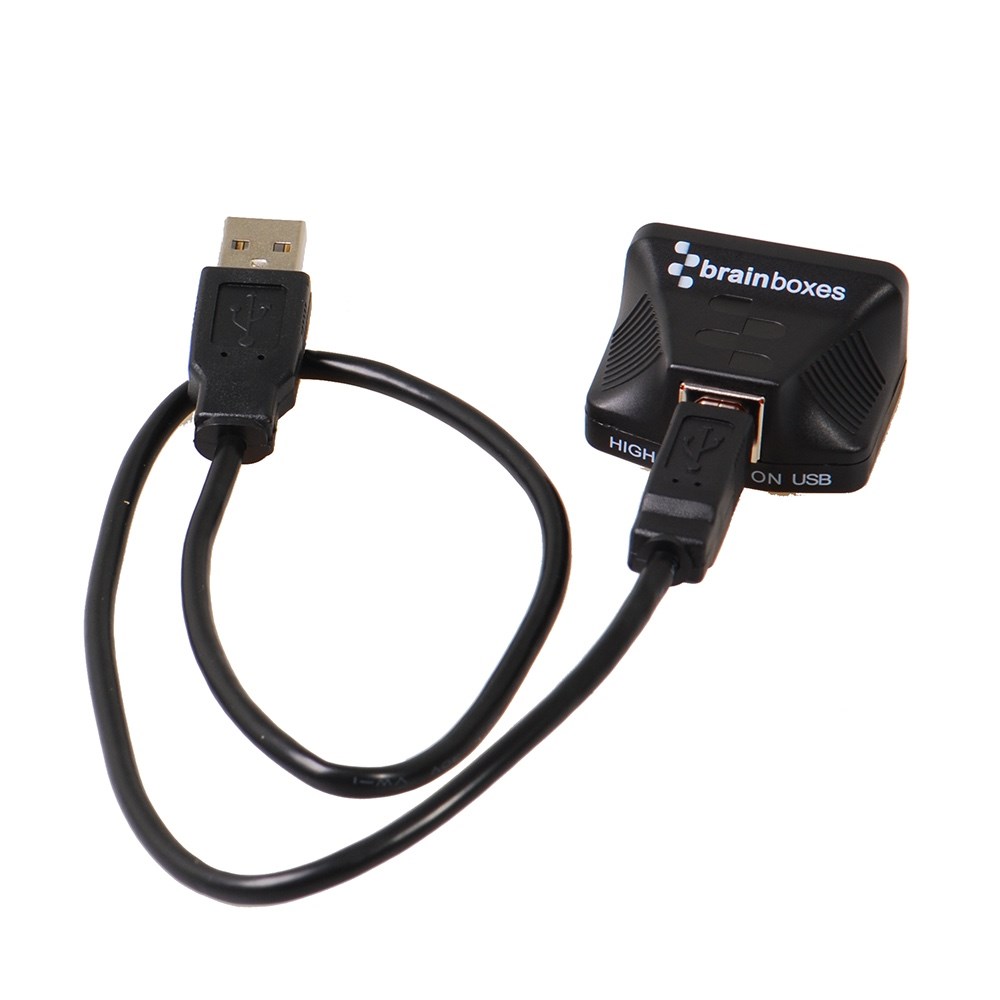

CableUSB cable Type A to B (0.5 metre ~ 1.5ft)

Serial Port Settings

Max Baud Rate921,600
Data Bits7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1 or 2
Tx/Rx ModesPoint to Point

General

PCB Layers4
Operating Temperature Range-40 °C to +80 °C / -40 °F to +176 °F
Industrial StandardYes
Power Consumption40mA @ 5V
Product Weight0.024 kg

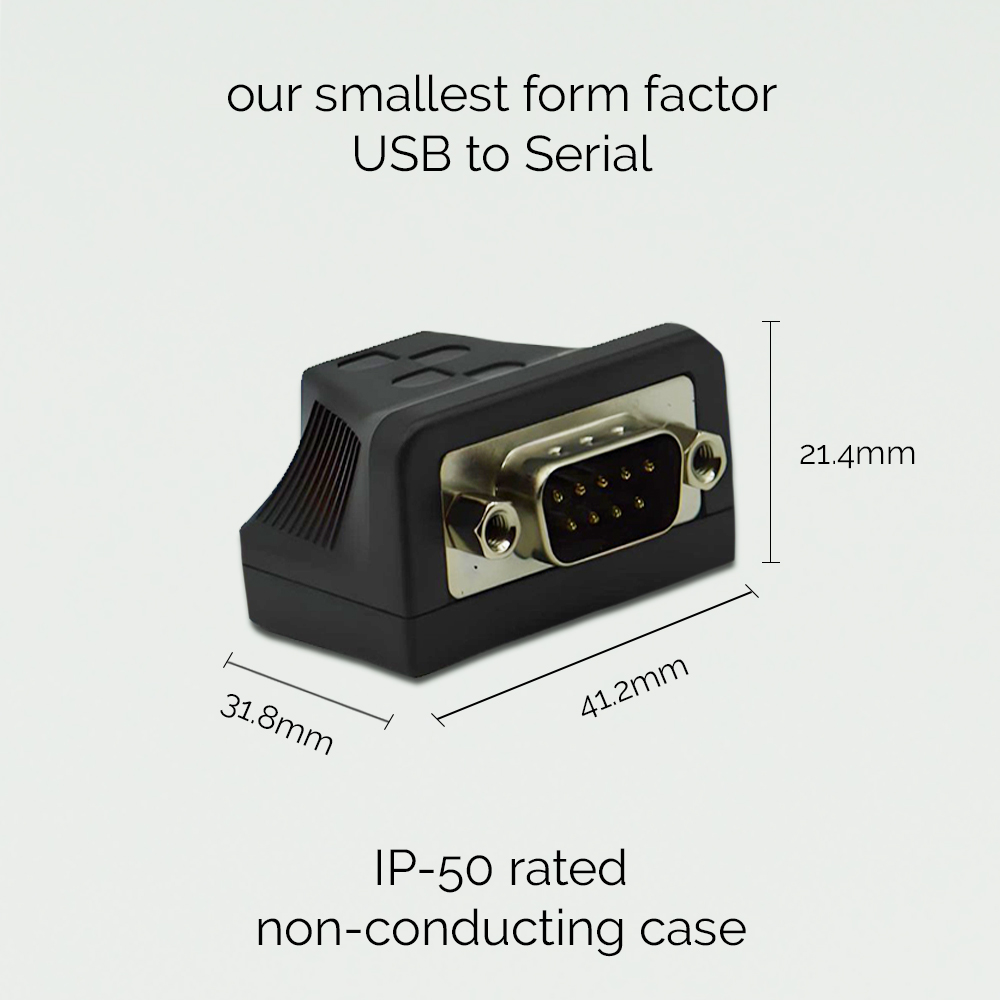

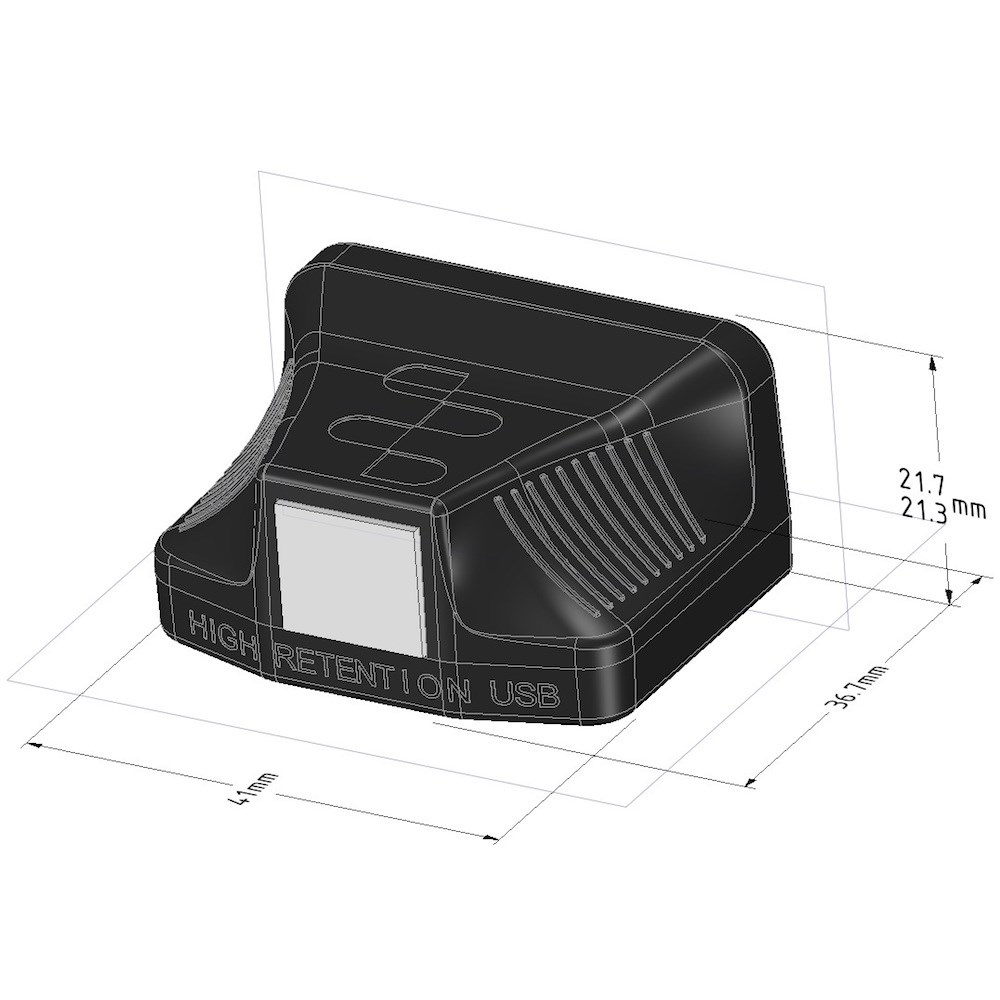

Product Dimensions41 x 38 x 22 mm
Packaged Weight0.155 kg
Packaged Dimensions160 x 135 x 49 mm
GTIN (barcode)837324003499

Operating System Compatibility

Supported SystemsWindows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Raspberry Pi, Mac OS X, Linux

Interface

USB 2.0480 Mb/s USB 2.0 data rates
