US-757

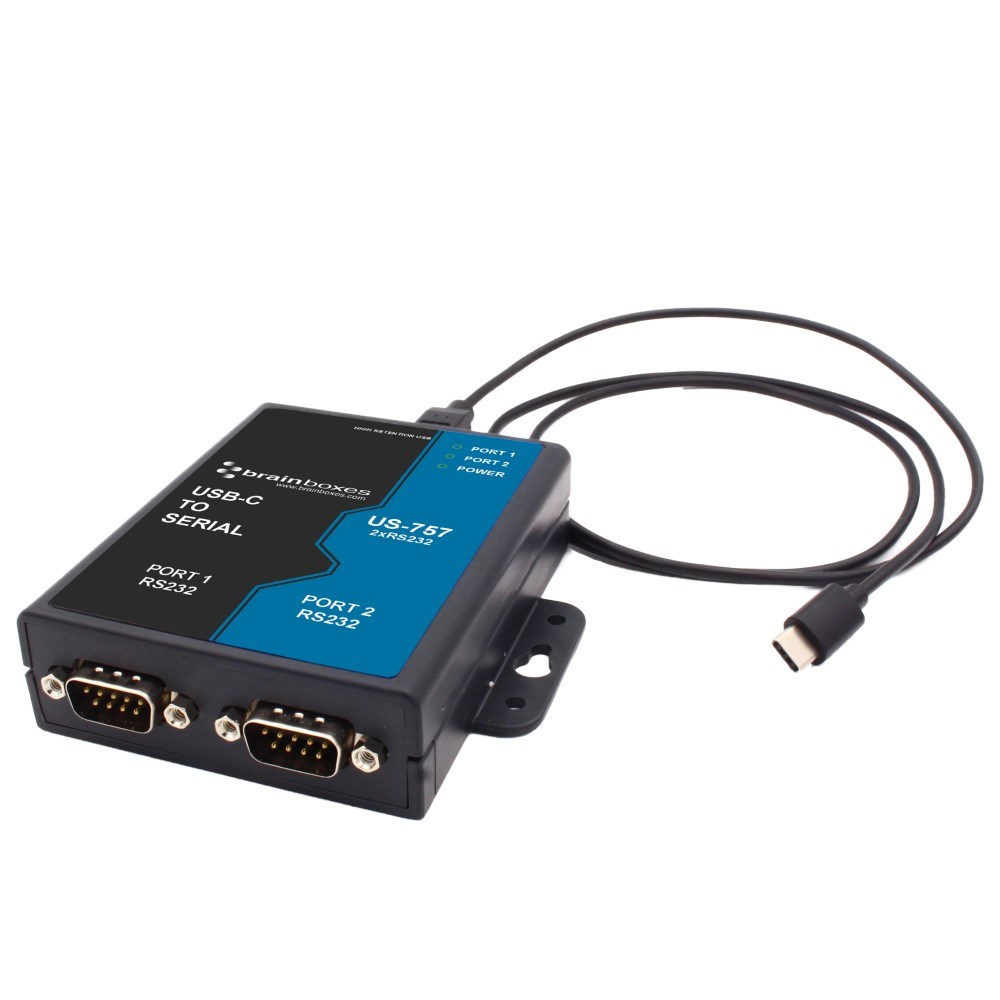

2 Port RS232 USB-C to Serial Adapter
Description
USB-C to Serial adapter providing two RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte transmit and 384 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. High retention USB port gives a secure connection.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019.
Lifetime warranty and support.
Key Features
- 2 port RS-232 USB-C to serial adapter
- Data rate from 300 to 921,600 baud

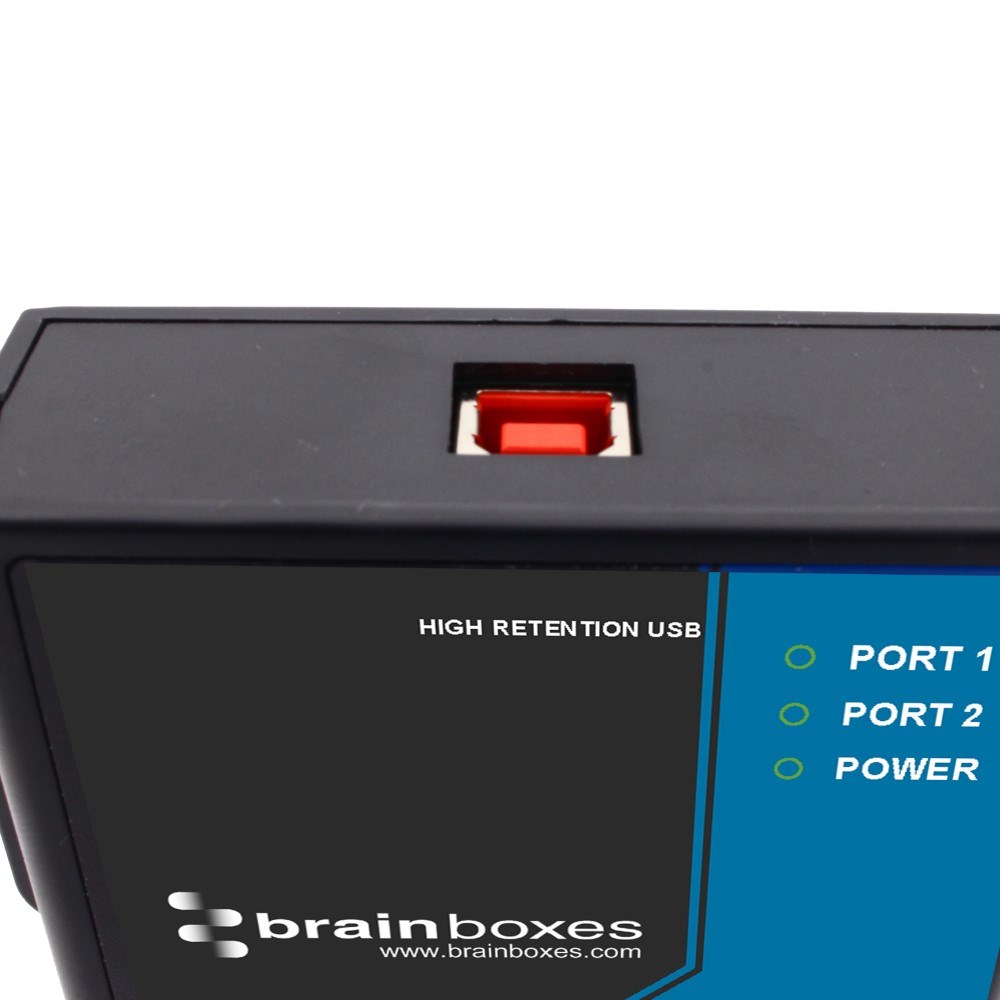

- High Retention USB Socket with 1m USB-B to USB-C cable
- Drivers for popular operating systems including Windows 10
- Works where many other USB to Serial devices do not
Technical Specifications
Serial Port
| Ports | 2 |
| Protocol | RS232 |
| Connector | DB9 Connector - 9 Pin Male |
| Tx FIFO Size | 128 |
| Rx FIFO Size | 256 |
| Operating Distance | EIA - RS232 Standard |
| Cable | USB cable Type A to B (0.5 metre ~ 1.5ft) |
Serial Port Settings
| Max Baud Rate | 1,000,000 (1 MegaBaud) |
| Data Bits | 5,6,7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1, 1.5 or 2 |
| Tx/Rx Modes | Point to Point |
Power
| Power Consumption | 100mA @ 3.3V |
General
| PCB Layers | 4 |
| Operating Temperature Range | 0 °C to +60 °C / 32 °F to +140 °F |
| Industrial Standard | No |
| Product Weight | 0.109 kg |
| Product Dimensions | 102 x 100 x 27 mm |
| Packaged Weight | 0.260 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324004625 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Mac OS X, Linux |
Interface
| USB 2.0 | 480 Mb/s USB 2.0 data rates |
