US-720
USB-C to 1 Port RS422/485 Industrial USB to Serial Adapter
Description

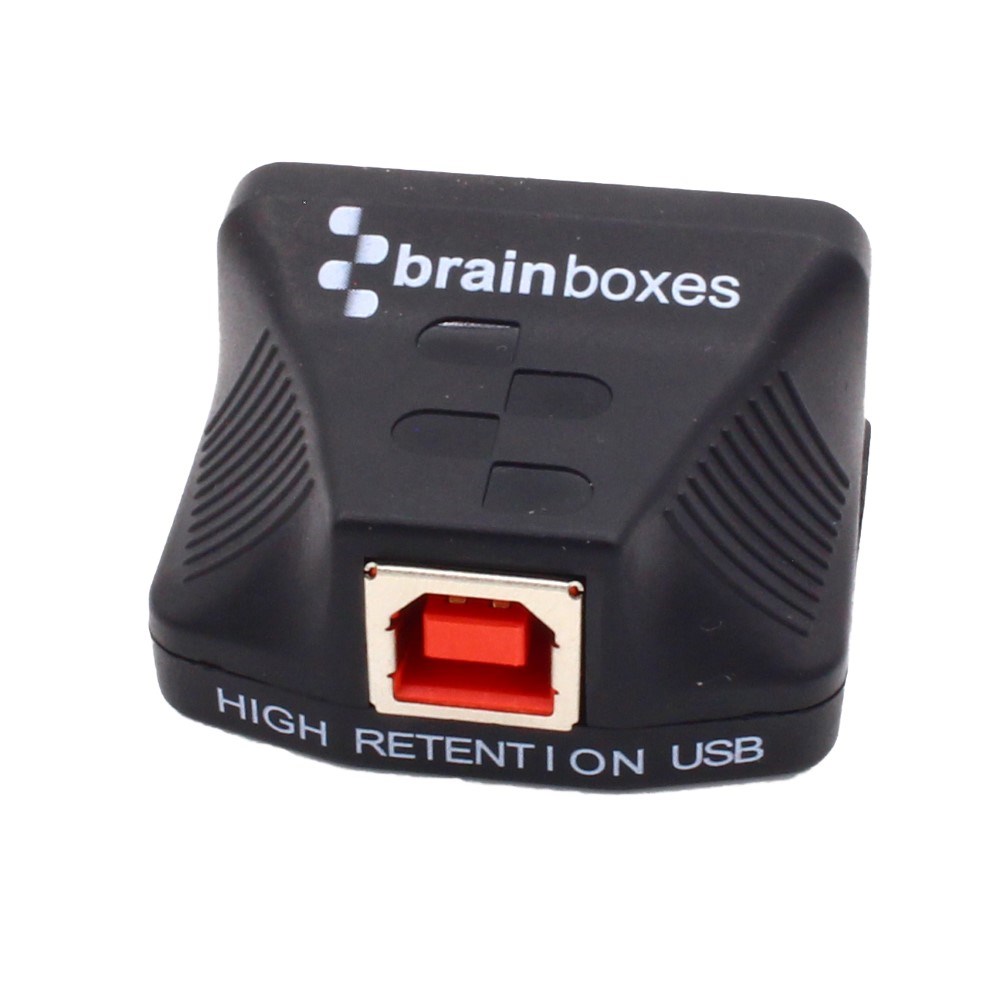

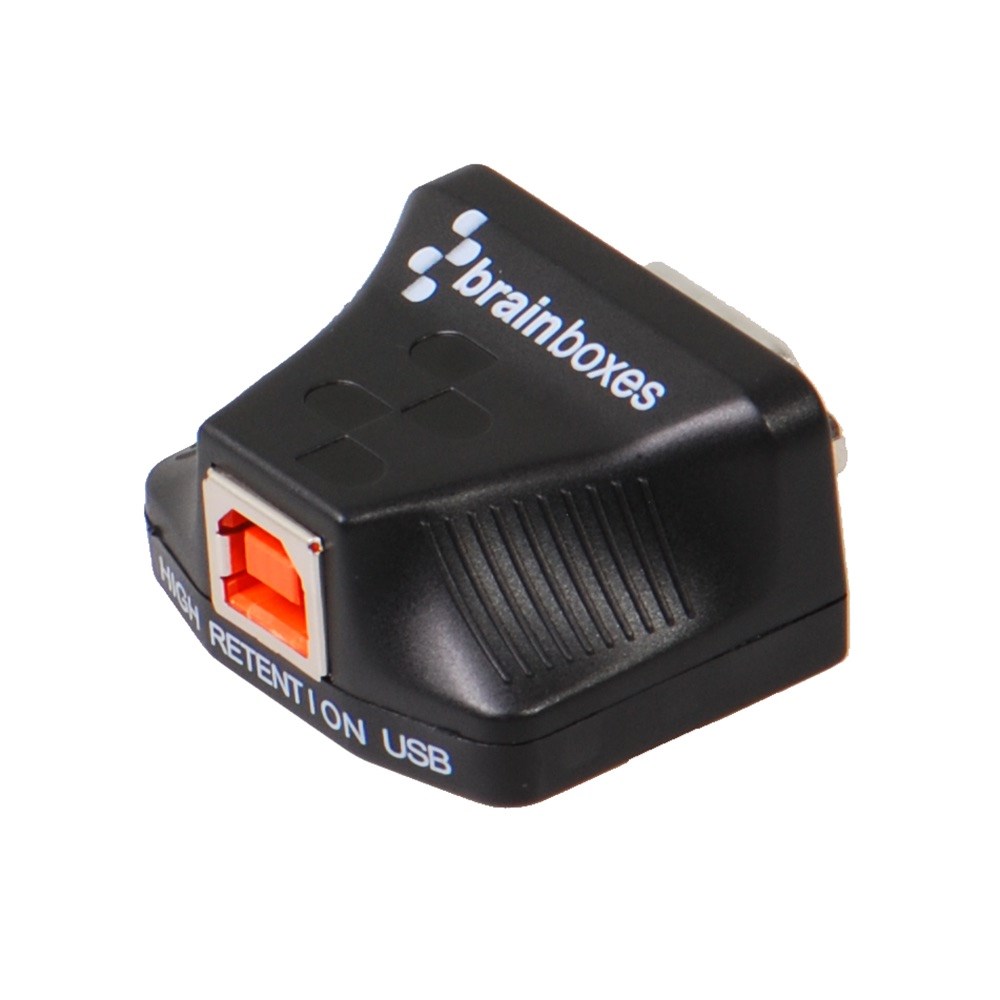

Tough ultra small USB-C to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection, comes with 1m USB-B to USB-C cable.
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers – eliminating many common problems with USB to Serial – giving you a reliable, stable, native com port solution.
Key Features
- 1 port RS-422/485 USB-C to serial adapter
- High retention USB connector with 1m cable
- Small form factor USB-C to Serial adaptor
- Works where many other USB to Serial devices do not
- Industrial Specification -40 °C to +80 °C
- Lifetime Warranty and Support
Technical Specifications
Serial Port
| Ports | 1 |
| Protocol | RS422/485 |
| Connector | DB9 Connector - 9 Pin Male |
| Tx FIFO Size | 512 |
| Rx FIFO Size | 512 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) |
| Cable | USB cable Type A to B (0.5 metre ~ 1.5ft) |
Serial Port Settings
| Max Baud Rate | 921,600 |
| Data Bits | 7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Tx/Rx Modes | Full Duplex, Half Duplex Autogating, Hardware Autogating |
Power
| Power Consumption | 50mA @ 5V |
General
| PCB Layers | 4 |
| Operating Temperature Range | 0 °C to +60 °C / 32 °F to +140 °F |
| Industrial Standard | Yes |
| Product Weight | 0.024 kg |

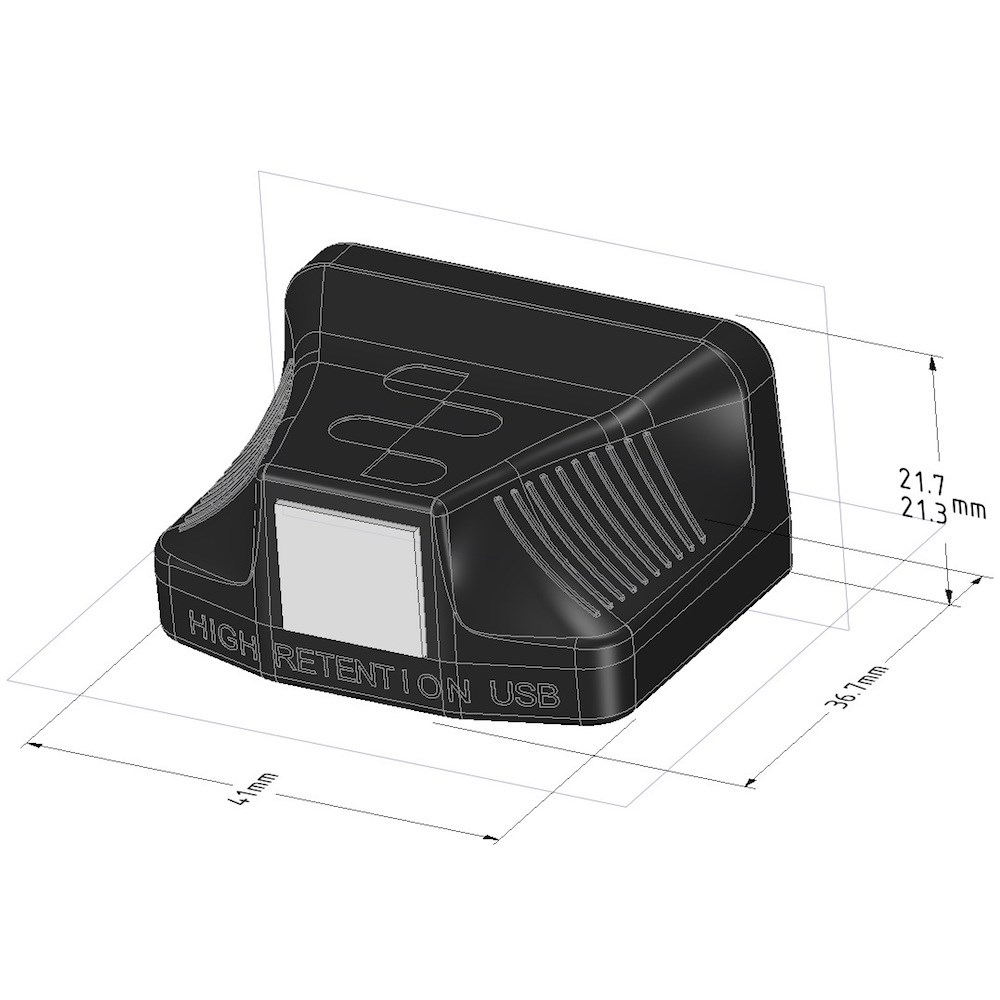

| Product Dimensions | 41 x 38 x 22 mm |
| Packaged Weight | 0.156 kg |
| Packaged Dimensions | 160 x 135 x 49 mm |
| GTIN (barcode) | 837324004618 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Raspberry Pi, Mac OS X, Linux |
Interface
| USB 2.0 | 480 Mb/s USB 2.0 data rates |
