US-601
8 Port RS422/485 USB to Serial Multi Drop Hub
Description
USB to Serial multi drop hub providing 1 RS422/485 serial port multiplexed 8 times for multibus applications. Data transfer rates up to 921,600 baud and 128 byte transmit and 256 byte receive FIFOs, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Drivers for Windows 32 bit and 64 bit operating systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for Mac OS X and Linux.
Key Features
- 8 Port RS422/485 USB to Serial Multi Drop Hub
- 1 RS422/485 port multiplexed 8 times for multibus applications
- Data rate up to 921,600 baud
- High retention USB Type B connector
- Wall mount or DIN rail mounting options
- Industrial grade design
Technical Specifications
Serial Port
| Ports | 1 Multi Drop to 8 |
| Protocol | RS422/485 |

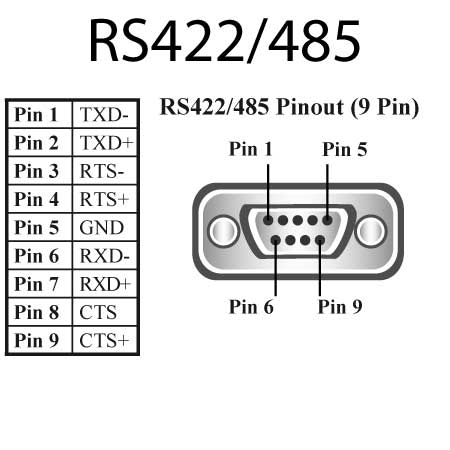

| Connector | 8x DB9 Connector (9 Pin Male), USB Type B High Retention |
| Tx FIFO Size | 128 |
| Rx FIFO Size | 256 |
| Operating Distance | RS422/485 Standard (4000 ft : 1200 metres) |
| Cable | USB cable Type A to B (1 metre ~ 3ft) |
Serial Port Settings
| Max Baud Rate | 921,600 |
| Data Bits | 7 or 8 |
| Parity | Odd, Even, None, Mark or Space |
| Stop Bits | 1 or 2 |
| Flow Control | RTS/CTS, XON/XOFF |
| Tx/Rx Modes | Full Duplex, Half Duplex Autogating |
Power
| Power Input | 5V DC input |
| Power Supply | Global Power Supply - PW-500 |
| Power Consumption | 1A @ 5V |
General
| Mounting Accessories | Wall Mounting kit - MK-059; DIN Clip kit - MK-070 |
| PCB Layers | 4 |
| Industrial Standard | Yes |
| Product Weight | 0.773 kg |
| Product Dimensions | 215 x 123 x 56 mm |
| Packaged Weight | 0.965 kg |
| Packaged Dimensions | 300 x 135 x 80 mm |
| GTIN (barcode) | 837324002706 |
Operating System Compatibility
| Supported Systems | Windows 10, Windows 8 (32/64), Windows 7 (32/64), Windows Server 2008, Windows Vista, Windows XP, Mac OS X, Linux |
Interface
| USB 2.0 | 480 Mb/s USB 2.0 data rates |
